LNJ412K84RA

LED Indication - Discrete Overview

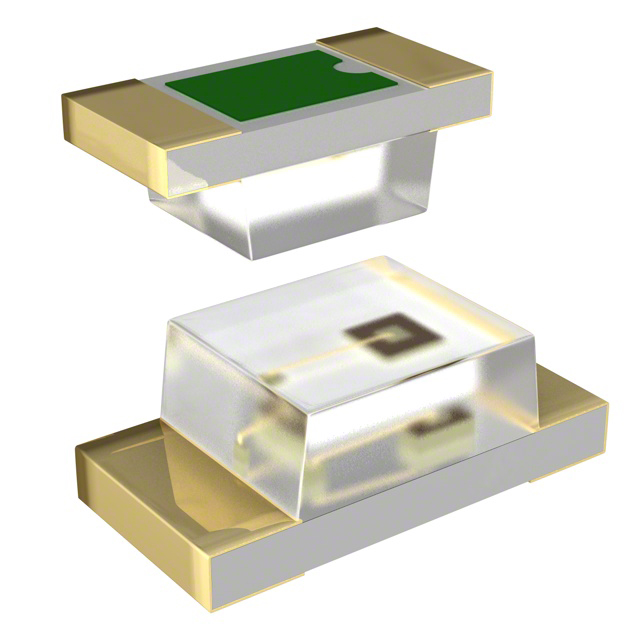

The Panasonic LNJ412K84RA is a discontinued surface-mount amber LED indicator in the LNJ412 series. It features a standard configuration with a rectangular lens having a flat top, packaged in a 0603 (1608 metric) footprint measuring 1.60mm x 0.80mm x 0.65mm max height. The component emits light at a peak wavelength of 595nm with a typical forward voltage of 2.1V at a test current of 10mA. It provides an intensity of 26mcd and utilizes a lens size of 1.10mm x 0.80mm.

LED Indication - Discrete Feature Summary

• Amber color emission with a peak wavelength of 595nm for clear visual indication
• Standard surface-mount design optimized for automated assembly processes
• Rectangular lens style with a flat top profile for consistent light distribution

LED Indication - Discrete Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer electronics devices
• Indicator lights in industrial control panels

LED Indication - Discrete Procurement Notes

This component is officially listed as obsolete by the manufacturer. Verify availability through secondary market distributors or consider equivalent replacements from the same product family. Confirm that the discontinuation notice does not impact existing production schedules requiring long-term supply stability.

LED Indication - Discrete Selection Notes

Select this part when a specific amber color and 0603 package dimensions are required for space-constrained designs. Ensure the 2.1V forward voltage aligns with the driving circuit capabilities. Note that the 26mcd intensity may require consideration for visibility requirements in bright environments compared to higher-intensity alternatives.

LED Indication - Discrete Part Context

Part of the LNJ412 series of discrete LED indicators manufactured by Panasonic Industry. This series focuses on compact surface-mount solutions for various electronic applications. The LNJ412K84RA specifically denotes the amber variant within this lineup, sharing common mechanical dimensions with other colors in the family.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers include LNJ412K8YRA, which shares the same 0603 package and amber color but differs in luminous intensity and peak wavelength specifications.
