LNJ808K8SRA

$0.38

Description：LED ORANGE SS TYPE LED SMD
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:112aa73c4d8b Category: LED Indication - Discrete Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LNJ808K8SRA is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is LED ORANGE SS TYPE LED SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LNJ808K8SRA

Description：LED ORANGE SS TYPE LED SMD
Series：-
Mfr：Panasonic Electronic Components
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：Standard
Lens Color：-
Lens Transparency：-
Millicandela Rating：1mcd
Lens Style：Rectangle with Flat Top
Lens Size：0.90mm x 0.80mm
Voltage - Forward (Vf) (Typ)：1.93V
Current - Test：10mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：610nm
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：-
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.90mm

LED Indication - Discrete datasheet and documents for LNJ808K8SRA

LNJ808K8SRA

LED Indication - Discrete Overview

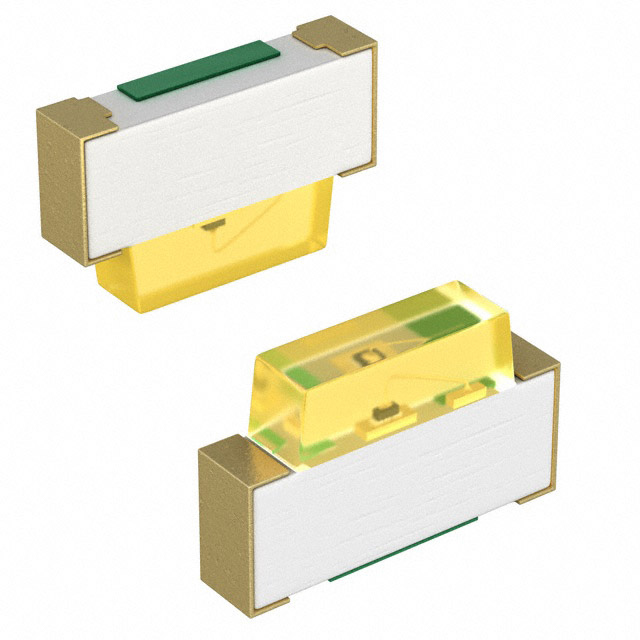

The Panasonic LNJ808K8SRA is a discontinued single-color orange surface-mount LED in the LN series. It utilizes a 0603 (1608 metric) package with dimensions of 1.60mm length, 0.80mm width, and a maximum height of 0.90mm. The component features a rectangular lens with a flat top and emits light at a peak wavelength of 610nm. Key electrical parameters include a typical forward voltage of 1.93V measured at a test current of 10mA, and an intensity rating of 1mcd. It carries a Moisture Sensitivity Level (MSL) of 3.

LED Indication - Discrete Feature Summary

Standard configuration for discrete indicator applications
Rectangular lens design with a flat top surface
Surface-mount construction compatible with automated assembly

LED Indication - Discrete Applications

Wearable technology components
General equipment status indication
Electronic device front panels

LED Indication - Discrete Procurement Notes

This component has been officially discontinued by Panasonic Industry and is no longer in production. Verification of final stock availability from distributors is required before integration into designs. Engineers must confirm that the obsolete status does not conflict with long-term supply chain requirements or product lifecycle constraints prior to any procurement attempts.

LED Indication - Discrete Selection Notes

Designers should evaluate alternative components due to the discontinuation status of this part number. Selection criteria should prioritize matching the physical footprint, optical characteristics, and electrical specifications of existing designs to ensure seamless replacement without requiring significant circuit board modifications or redesign efforts.

LED Indication - Discrete Part Context

The LNJ808K8SRA belongs to the Panasonic LN series of single-color LEDs. This series provides standard surface-mount indicators characterized by compact packaging and consistent optical performance. The specific model represents an orange emission variant within this broader family of electronic components.
