LNJ906W5BUX

LED Indication - Discrete Overview

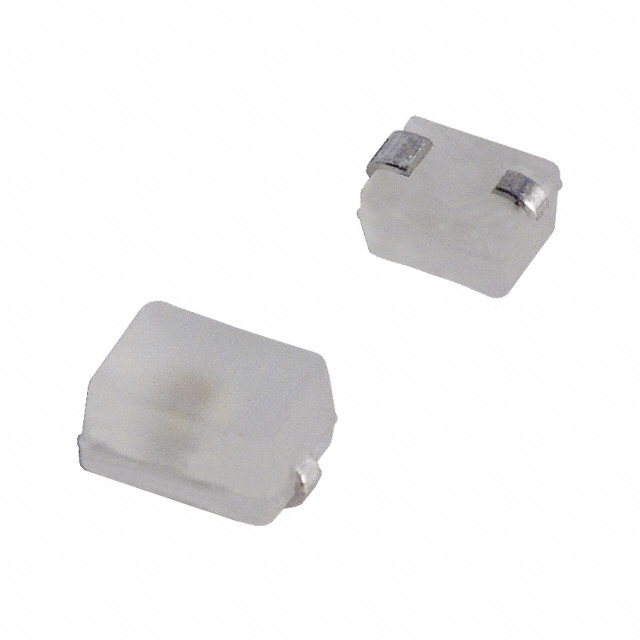

The LNJ906W5BUX is a surface-mount LED indicator manufactured by Panasonic Electronic Components. It features a standard configuration with a white lens color. The component has a maximum height of 1.10mm and operates at a test current of 5mA. This discrete LED device is designed for visual indication in electronic circuits.

LED Indication - Discrete Feature Summary

• Surface-mount design for automated assembly
• White diffused lens for clear visual indication
• Standard configuration suitable for general signaling

LED Indication - Discrete Applications

• Visual status indication in consumer electronics
• Power state signaling in home appliances
• Indicator lights in control panels

LED Indication - Discrete Procurement Notes

Verify component availability as the LNJ906W5BUX is listed as obsolete and no longer produced. Confirm that replacement sources offer genuine parts matching the original specifications. Check for valid substitutes such as Dialight part number 5988191107F if sourcing new inventory is required for production continuity.

LED Indication - Discrete Selection Notes

Select this component only for legacy designs requiring exact form factor compatibility. Consider alternative surface-mount LEDs with identical pinout and luminous intensity if redesigning. Ensure the 5mA test current requirement aligns with the target circuit's drive capabilities and power constraints.

LED Indication - Discrete Part Context

This LED belongs to Panasonic's discrete indicator line, typically used for visual feedback in various electronic systems. As an SMD component, it supports high-volume manufacturing processes. The specific model denotes a white lens variant within the broader family of panel and board-mounted indicators.

LED Indication - Discrete Replacement Considerations

Dialight part number 5988191107F is identified as a similar available substitute. Verify mechanical dimensions and electrical characteristics before substitution.
