LNJC24X4ARA

LED Indication - Discrete Overview

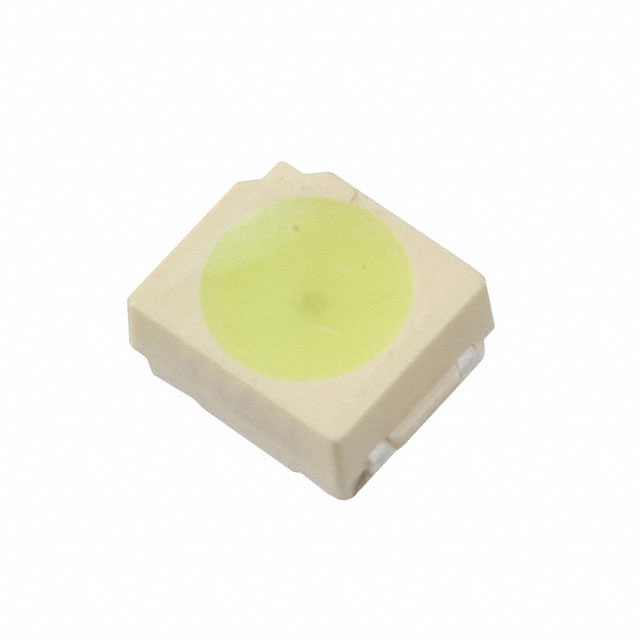

The LNJC24X4ARA is a single-color surface-mount LED manufactured by Panasonic Electronic Components. It features an ice blue emission color and utilizes a PLCC package type. The component operates with a forward current of 20mA and a test current of 10mA. Its forward voltage is specified at 3V. The device offers a luminous intensity of 230mcd at a viewing angle of 0.175 steradians. It is designed for high-brightness applications in compact electronic assemblies.

LED Indication - Discrete Feature Summary

• High brightness surface mounting chip LED design
• Ice blue emission color for clear visual indication
• RoHS compliant and lead-free construction

LED Indication - Discrete Applications

• Discrete LED indication in consumer electronics
• Status indicator lights in industrial control panels
• Visual signaling in automotive instrumentation

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from Panasonic Electronic Components to confirm electrical characteristics and mechanical dimensions. Ensure that the ordering suffix matches the required packaging configuration. Confirm RoHS compliance status through official manufacturer documentation prior to integration into regulated products.

LED Indication - Discrete Selection Notes

Select this component when an ice blue surface-mount LED is required for space-constrained designs. Consider the 3V forward voltage drop and 20mA operating current for circuit design. Verify compatibility with automated pick-and-place equipment due to the PLCC package format.

LED Indication - Discrete Part Context

This part belongs to Panasonic's TOPLED series, which focuses on high-reliability surface-mount LEDs. The LNJC24X4ARA variant specifically targets applications requiring distinct ice blue illumination. It represents a standard solution for discrete indication tasks within broader Panasonic semiconductor portfolios.

LED Indication - Discrete Replacement Considerations

Consult official Panasonic substitution guides for direct equivalents. Cross-reference pinout and luminous intensity specifications when evaluating alternative suppliers. No public confirmed substitute part numbers are available in the provided source data.
