LO L29K-J2L1-24-0-2-R18-Z

LED Indication - Discrete Overview

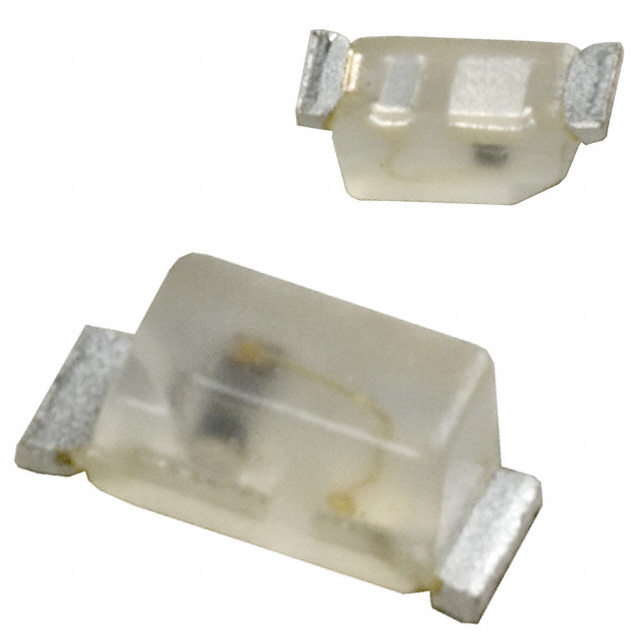

The LO L29K-J2L1-24-0-2-R18-Z is a single-color orange LED from the SmartLED series by ams OSRAM. It features a 0603 (1608 metric) surface-mount package with dimensions of 1.70mm length, 0.80mm width, and a maximum height of 0.67mm. The device emits at a peak wavelength of 610nm with a typical forward voltage of 1.8V at a test current of 2mA. It offers a viewing angle of 160 degrees and utilizes a rectangular lens with a flat top and diffused transparency.

LED Indication - Discrete Feature Summary

• Utilizes a compact 0603 surface-mount form factor for space-constrained designs
• Features a wide 160-degree viewing angle for broad visibility
• Incorporates a diffused rectangular lens to optimize light distribution

LED Indication - Discrete Applications

• Status indication in consumer electronics
• Instrument panel lighting
• General-purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify component authenticity through authorized channels. Confirm RoHS compliance status and check for end-of-life notices prior to procurement. Ensure storage conditions meet moisture sensitivity level requirements to maintain reliability during assembly processes.

LED Indication - Discrete Selection Notes

Select this component for applications requiring low forward voltage operation in small footprints. Consider the 1.8V typical forward voltage for efficient power management. Evaluate the 160-degree viewing angle against optical design requirements to ensure adequate visibility coverage.

LED Indication - Discrete Part Context

This part belongs to the SmartLED family, designed for high-performance visible light applications. It complements other variants in the LO L29K series, offering specific wavelength and packaging options for diverse electronic indicator needs across industrial and consumer markets.

LED Indication - Discrete Replacement Considerations

Consult official datasheets for direct substitutes within the LO L29K series. Verify pin compatibility and electrical characteristics before replacing.
