LP P47F-P2S1-35-1-30-R18-Z

LED Indication - Discrete Overview

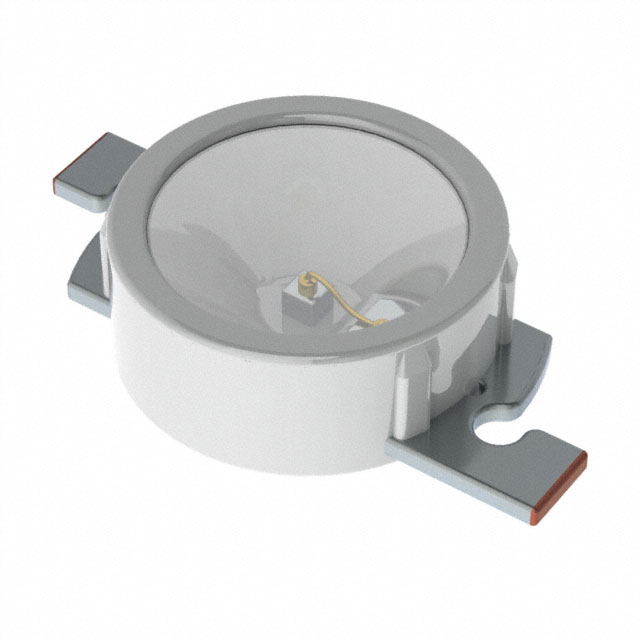

The LP P47F-P2S1-35-1-30-R18-Z is a green single-color LED from the PointLED series by ams OSRAM. It features a surface-mount package with two flat leads and a clear, colorless lens. The device operates at a forward voltage of 2.3V with a test current of 30mA. Key optical parameters include a peak wavelength of 560nm, an intensity of 1.18 cd, and a light flux of 3.72 lm. The component has a viewing angle of 120 degrees and physical dimensions of 3.4mm length, 1.25mm width, and 0.83mm height.

LED Indication - Discrete Feature Summary

• Utilizes a compact SMD form factor suitable for space-constrained designs
• Features a clear lens for optimal light transmission
• Provides high-intensity green output within a standard footprint

LED Indication - Discrete Applications

• General indicator lighting in electronic devices
• Status indication on control panels
• Visual signaling in consumer electronics

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix to confirm the exact reel quantity and packaging configuration required for your assembly line. Confirm that the component meets RoHS standards if applicable to your manufacturing process. Ensure compatibility with standard reflow soldering profiles for surface-mount technology. Check for any recent product change notifications regarding material or dimensional updates.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator is required in a low-profile surface-mount package. Consider the 120-degree viewing angle for applications requiring wide visibility. Evaluate the 30mA forward current requirement against your circuit design constraints. Compare the physical dimensions against available board space to ensure proper fitment.

LED Indication - Discrete Part Context

This part belongs to the PointLED family, designed for general-purpose indication. It represents a standard offering in ams OSRAM's discrete LED portfolio. The component is widely used in various electronic applications where reliable visual signaling is necessary. It complements other colors in the same series for multi-indicator systems.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-compatibility with existing inventory before switching suppliers. Consult official distributor databases for potential equivalent components with matching electrical and mechanical specifications.
