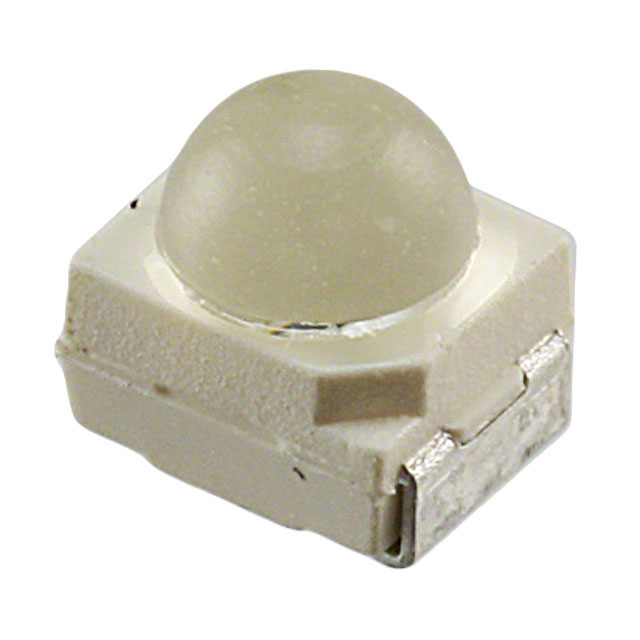

LP T655-Q1R2-25-0-30-R33-Z

Description：LED GREEN CLEAR 2PLCC SMD
Series：TOPLED® with Lens
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)

SKU:7f7bdc9a2cb3 Category: LED Indication - Discrete Brand: ams-OSRAM USA INC.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP T655-Q1R2-25-0-30-R33-Z is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists ams-OSRAM USA INC.. Its product description is LED GREEN CLEAR 2PLCC SMD. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for LP T655-Q1R2-25-0-30-R33-Z

Description：LED GREEN CLEAR 2PLCC SMD
Series：TOPLED® with Lens
Mfr：ams-OSRAM USA INC.
Package：Tape & Reel (TR)
Color：Green
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：125.5mcd
Lens Style：Round with Domed Top
Lens Size：2.60mm Dia
Voltage - Forward (Vf) (Typ)：2V
Current - Test：30mA
Viewing Angle：60°
Mounting Type：Surface Mount
Wavelength - Dominant：560nm
Wavelength - Peak：562nm
Features：-
Package / Case：2-PLCC
Supplier Device Package：2-PLCC
Size / Dimension：3.20mm L x 2.80mm W
Height (Max)：3.50mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for LP T655-Q1R2-25-0-30-R33-Z

LP T655-Q1R2-25-0-30-R33-Z

LED Indication - Discrete Overview

The LP T655-Q1R2-25-0-30-R33-Z is a green surface-mount LED from the TOPLED with Lens series. It features a 2-PLCC package and emits at a wavelength of 560 nm. The component has a viewing angle of 60 degrees and operates within a standard configuration.

LED Indication - Discrete Feature Summary

Green light emission
TOPLED with Lens series
2-PLCC SMD package

LED Indication - Discrete Applications

General indicator lighting
Electronic status displays

LED Indication - Discrete Procurement Notes

Verify part authenticity through authorized channels. Confirm RoHS compliance and datasheet specifications against current manufacturer records before procurement to ensure compatibility.

LED Indication - Discrete Selection Notes

Select this component for applications requiring a 60-degree viewing angle and green illumination in a compact 2-PLCC form factor. Ensure thermal management aligns with SMD mounting requirements.

LED Indication - Discrete Part Context

This part belongs to the TOPLED with Lens series, designed for surface-mount technology. It provides reliable green indication in electronic assemblies where space efficiency and clear visual signaling are prioritized.
