LP0402N2690ANTR

Overview

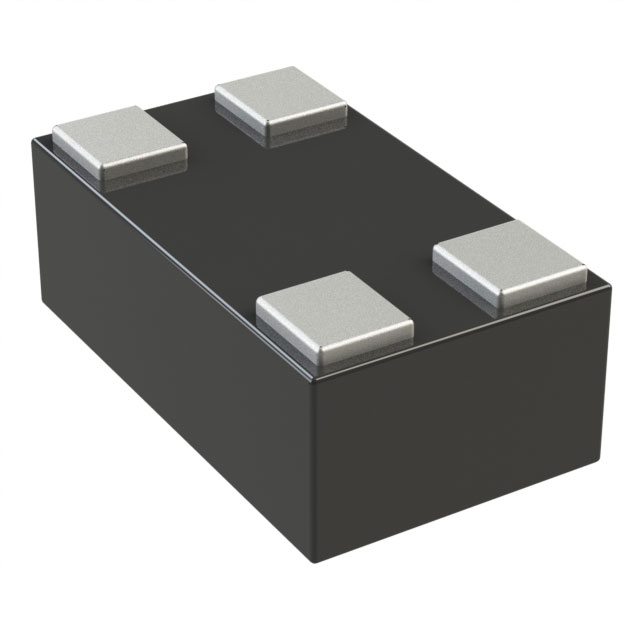

The LP0402N2690ANTR is a surface-mount thin-film low-pass filter manufactured by KYOCERA AVX. It features a center frequency of 2.69 GHz and a bandwidth of 100 MHz, designed for signal conditioning applications. The component operates within a 50 Ohm impedance system and utilizes an SMD/SMT termination type. Housed in a compact 0402 (1005 metric) package, it supports board mounting and is supplied in reel packaging. The device is rated for operation between -40°C and +85°C, ensuring reliability in standard electronic environments.

Feature Summary

• Thin-film multilayer technology provides miniature form factor with high-frequency performance
• Low insertion loss of 0.5 dB ensures minimal signal attenuation
• Rugged construction suitable for high-frequency wireless systems

Applications

• RF signal conditioning circuits
• High-frequency wireless system filtering
• Broadband communication equipment

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 0402 package dimensions and thermal characteristics align with your PCB layout requirements. Ensure the operating temperature range of -40°C to +85°C meets your environmental specifications. Cross-reference the part number LP0402N2690ANTR with official manufacturer catalogs to confirm current production status and availability.

Selection Notes

Select this component when a precise 2.69 GHz low-pass filter with 100 MHz bandwidth is required in a 50 Ohm system. The 0402 footprint is ideal for space-constrained designs. Consider the thin-film construction for superior high-frequency stability compared to ceramic alternatives. Verify that the 0.5 dB insertion loss meets your system's power budget constraints.

Part Context

This part belongs to the LP series of RF filters from KYOCERA AVX, which utilizes thin-film technology for high-performance signal conditioning. These components are engineered for compactness and reliability in modern electronic devices. The LP series is designed to support various high-frequency wireless standards, offering consistent electrical performance across different operating conditions.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult KYOCERA AVX technical support for potential equivalents if this specific model is unavailable.

FAQ

What is the center frequency of the LP0402N2690ANTR?

The center frequency is 2.69 GHz.

What is the bandwidth specification for this filter?

The bandwidth is 100 MHz.
