LP0805A2442AWTR

Overview

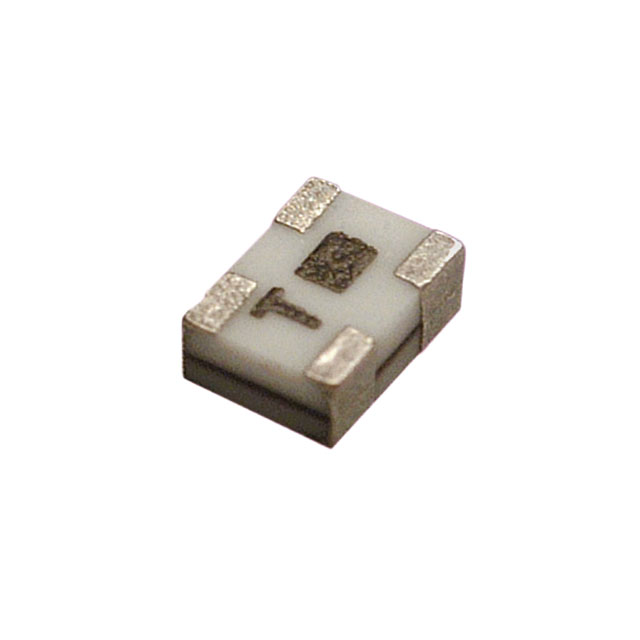

The LP0805A2442AWTR is a low-pass filter from the KYOCERA AVX LP series, designed for signal conditioning applications. It operates at a center frequency of 2.442 GHz with a nominal impedance of 50 ohms. The component features an insertion loss of 0.3 dB and utilizes SMD/SMT termination types. It is housed in a compact 0805 (2012 metric) package suitable for board mount installation. The device functions within a temperature range of -40°C to +85°C and is supplied in reel packaging.

Feature Summary

• Thin-film construction provides stable high-frequency performance
• Compact 0805 surface-mount footprint enables dense circuit layouts
• Low insertion loss ensures minimal signal attenuation in passband

Applications

• Wireless communication systems
• RF signal conditioning circuits
• Mobile device front-end modules

Procurement Notes

Verify the complete part number including the trailing 'WTR' suffix to ensure correct reel packaging configuration. Confirm that the 0805 package dimensions align with the target PCB land pattern. Check RoHS compliance status against specific project requirements, as environmental declarations may vary by production batch or region. Ensure storage conditions maintain moisture sensitivity level integrity prior to reflow soldering.

Selection Notes

Select this component when a low-pass filter is required specifically at the 2.442 GHz frequency point. The 50-ohm impedance matches standard RF transmission lines. Consider the 0.3 dB insertion loss specification for sensitive signal paths. The -40°C to +85°C operating range suits general commercial and industrial environments. Evaluate the thin-film technology benefits over other filter types for stability.

Part Context

This part belongs to the LP series of low-pass filters manufactured by KYOCERA AVX Components Corporation. The series utilizes thin-film technology for reliable RF performance. The LP0805A2442AWTR represents a specific frequency variant within the broader portfolio of signal conditioning components offered by the manufacturer for wireless infrastructure and consumer electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
