LP0AA0141A700

Overview

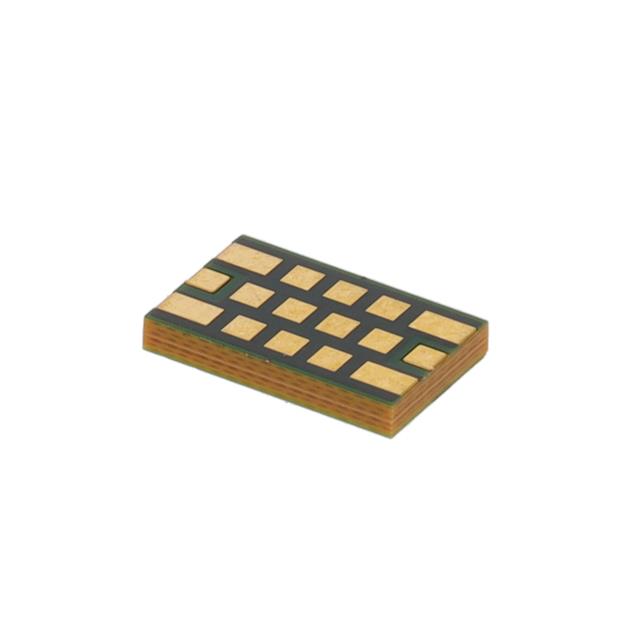

The LP0AA0141A700 is a low-pass RF filter manufactured by KYOCERA AVX, belonging to the MLO LP series. It features a cutoff frequency of 141 MHz and operates with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination for board mounting and is housed in a 2616 (6640 metric) package. It exhibits an insertion loss of 0.8 dB and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Provides signal conditioning through low-pass filtering characteristics
• Designed for surface mount technology integration
• Optimized for radio frequency applications

Applications

• RF signal processing circuits
• Microwave communication systems
• Signal conditioning modules

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as lead times may vary significantly. Confirm RoHS compliance details and specific ordering suffixes required for your project needs before finalizing procurement plans.

Selection Notes

Select this component when a 141 MHz cutoff frequency is required for low-pass filtering in 50-Ohm systems. Ensure the 2616 package dimensions fit the PCB layout constraints. Verify that the operating temperature range meets the environmental requirements of the intended application.

Part Context

This part belongs to the MLO LP series of low-pass filters from KYOCERA AVX. These components are engineered for high-performance RF and microwave applications, offering precise frequency control and reliable signal integrity in compact surface-mount packages.

Replacement Considerations

Consult official datasheets for direct substitutes within the same series. Alternative parts must match the 141 MHz cutoff, 50 Ohm impedance, and 2616 package size to ensure compatibility.
