LP0AA0156A700

Overview

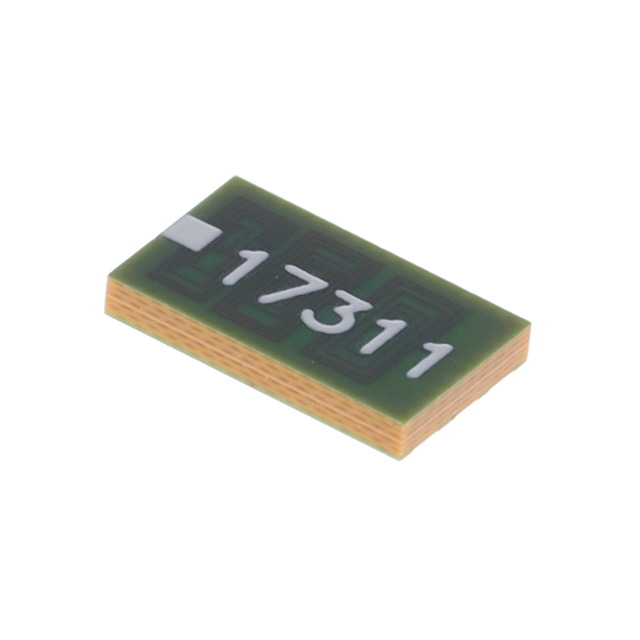

The KYOCERA AVX LP0AA0156A700 is a surface-mount low-pass RF filter designed for signal conditioning applications. It operates at a cutoff frequency of 156 MHz with a nominal impedance of 50 Ohms. The component utilizes a 16-ULGA package and supports board mounting via SMD/SMT termination. It functions within an operating temperature range from -55°C to +85°C. This device belongs to the MLO LP series, offering insertion loss characteristics suitable for radio frequency circuitry.

Feature Summary

• Provides low-pass filtering for signal conditioning in RF circuits
• Engineered for surface-mount board integration
• Maintains stable performance across extended industrial temperature ranges

Applications

• Radio frequency signal processing
• Communication system signal conditioning
• Broadband wireless infrastructure components

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as supply conditions may vary. Confirm RoHS compliance details through official documentation before integration. Ensure that the specified 16-ULGA package dimensions align with your PCB layout requirements. Cross-reference the datasheet for precise electrical tolerances and thermal specifications relevant to your specific design constraints.

Selection Notes

Select this component when a 156 MHz cutoff frequency and 50 Ohm impedance are required for low-pass filtering. The 16-ULGA package size dictates the footprint constraints on the printed circuit board. Consider the -55°C to +85°C operating range to ensure reliability under expected environmental conditions. Verify that the insertion loss specifications meet the system's signal integrity requirements.

Part Context

This part belongs to the KYOCERA AVX MLO LP series of low-pass filters. These components are categorized under signal conditioning products within the broader RF filters segment. The series is engineered to address the demands of compact electronic designs requiring reliable high-frequency performance in communication and broadband systems.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series. Verify that any replacement maintains identical frequency, impedance, and package specifications. Cross-reference datasheets to ensure equivalent electrical performance and thermal characteristics match the original design requirements.
