LP0AA0174A700

Overview

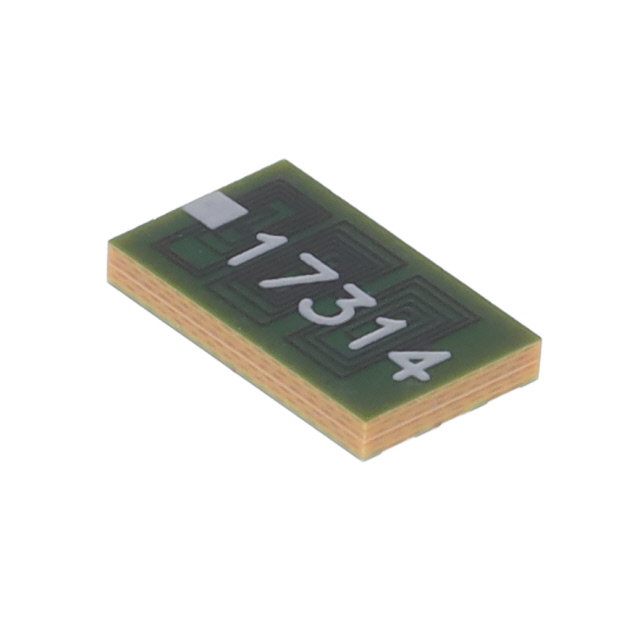

The LP0AA0174A700 is a surface-mount low-pass RF filter manufactured by KYOCERA AVX. It operates at a cutoff frequency of 174 MHz with a nominal impedance of 50 Ohms. The component utilizes a 16-ULGA package for board mounting and features an insertion loss of 0.8 dB. It functions within a temperature range of -55°C to +85°C and belongs to the MLO LP series.

Feature Summary

• Provides signal conditioning via low-pass filtering characteristics
• Designed for radio frequency applications
• Supports surface-mount technology installation

Applications

• RF signal path filtering
• Communication equipment signal conditioning
• Electronic circuit noise suppression

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer, as supply levels may fluctuate. Confirm that the 16-ULGA package dimensions align with your PCB footprint requirements. Ensure environmental compliance documentation matches project specifications before finalizing procurement orders.

Selection Notes

Select this component when a 174 MHz cutoff frequency and 50 Ohm system impedance are required. The 16-ULGA package size must fit the designated board space. Verify that the operating temperature range meets the environmental conditions of the intended application site.

Part Context

This part belongs to the MLO LP series of low-pass filters from KYOCERA AVX. The series focuses on signal conditioning components designed for RF environments. The manufacturer specializes in advanced electronic components, including capacitors and filters, for global industrial and commercial markets.

Replacement Considerations

Cross-reference other parts within the KYOCERA AVX LP series for alternative cutoff frequencies. Verify package compatibility if substituting with similar low-pass filters from other manufacturers. Check datasheet parameters for impedance and insertion loss matching.
