LP0AA0194A700

Overview

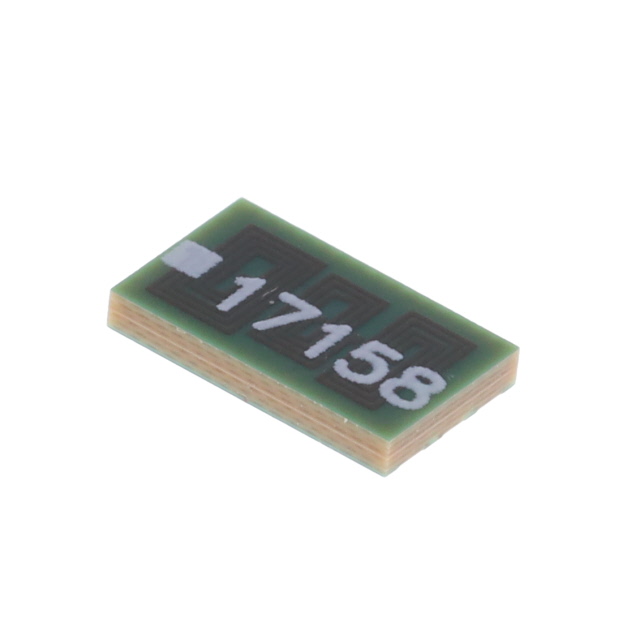

The LP0AA0194A700 is a low-pass filter from the MLO series by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 194 MHz with a nominal impedance of 50 Ohms. The component utilizes surface-mount technology (SMD/SMT) in a 2616 package size and features an insertion loss of 0.8 dB. It supports board mounting and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Multilayer Organic (MLO) construction for compact RF filtering
• Surface-mount design suitable for automated assembly
• Low insertion loss characteristics for efficient signal transmission

Applications

• RF signal conditioning circuits
• Wireless communication systems
• High-frequency electronic devices requiring low-pass filtering

Procurement Notes

Verify current availability through authorized distributors as lead times may vary. Confirm RoHS compliance status via official datasheets before integration. Ensure ordering suffixes match specific packaging requirements. Contact manufacturer for factory special order details if standard stock is unavailable.

Selection Notes

Select this component for applications requiring precise low-pass filtering at 194 MHz. The 50 Ohm impedance matches standard RF systems. Consider the 2616 package dimensions for PCB layout constraints. Verify thermal performance within the specified operating temperature range for reliability.

Part Context

This part belongs to the MLO LP series, utilizing Multilayer Organic technology. It serves as a specialized passive component for high-frequency signal integrity. The series focuses on compact form factors for modern electronics.

Replacement Considerations

Consult official substitution lists for compatible alternatives. Verify electrical parameters such as cutoff frequency and impedance match exactly. Check package compatibility for direct replacement without PCB redesign.
