LP0AA0204A700

Overview

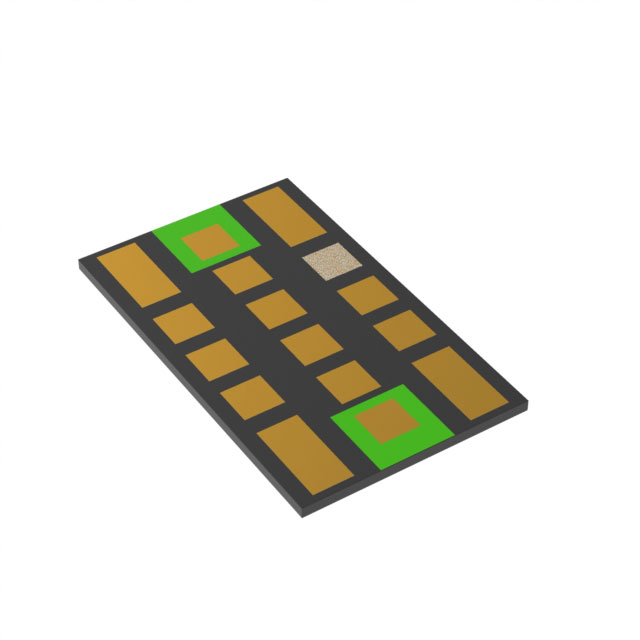

The KYOCERA AVX LP0AA0204A700 is a surface-mount low-pass RF filter designed for signal conditioning applications. It operates at a cutoff frequency of 204 MHz with a 50 Ohm impedance. The component utilizes the MLO LP series technology and is housed in a compact 2616 (6640 metric) package. It features SMD/SMT termination types suitable for board mounting. The device supports an operating temperature range from -55°C to +85°C and exhibits an insertion loss of 0.8 dB, ensuring efficient signal transmission within its specified bandwidth.

Feature Summary

• Provides effective low-pass filtering for radio frequency signals
• Utilizes MLO LP series technology for reliable performance
• Designed for surface-mount board integration

Applications

• RF signal conditioning circuits
• Communication equipment filtering
• Electronic system interference suppression

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure compatibility with specific design requirements. Confirm that the 2616 package dimensions align with the target PCB layout. Check for any regional distribution restrictions or availability limitations prior to ordering. Ensure that the operating temperature range meets the environmental conditions of the intended application.

Selection Notes

Select this component when a precise 204 MHz cutoff frequency is required for low-pass filtering in RF systems. Consider the 50 Ohm impedance match for standard transmission lines. Evaluate the 0.8 dB insertion loss against system sensitivity requirements. Ensure the 2616 package size fits within the available board space constraints.

Part Context

This component belongs to the KYOCERA AVX MLO LP series of RF filters. These filters are engineered for high-performance signal conditioning in demanding electronic environments. The series offers various cutoff frequencies to suit different RF applications while maintaining consistent impedance and package standards across the product line.

Replacement Considerations

Consult official KYOCERA AVX substitution guides for verified alternatives. Cross-reference specifications such as cutoff frequency, impedance, and package dimensions when evaluating potential substitutes.
