LP0AA0209A700

Overview

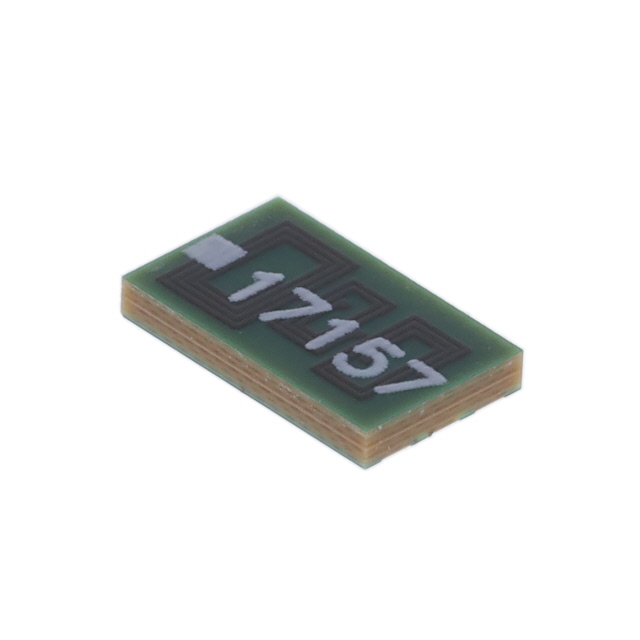

The LP0AA0209A700 is a low-pass filter from the MLO LP series by KYOCERA AVX. It operates at a cutoff frequency of 209 MHz with a 50 Ohm impedance. The component utilizes SMD/SMT termination and is housed in a 2616 (6640 metric) package. It features an insertion loss of 0.8 dB and supports board mounting. The device functions within a temperature range of -55 C to +85 C.

Feature Summary

• Multilayer organic construction for high-density passive filtering
• Low profile design optimized for surface-mount applications
• Patented technology delivering high-performance signal conditioning

Applications

• RF signal conditioning circuits
• High-frequency noise suppression
• Embedded communication modules

Procurement Notes

Verify current availability status as distribution may be restricted or limited in certain regions. Confirm RoHS compliance details directly with the manufacturer or authorized distributor before procurement. Ensure ordering suffixes match specific requirements, as variations may exist within the product line. Request official datasheets for final integration validation.

Selection Notes

Select this component for applications requiring precise low-pass filtering at 209 MHz. The 50 Ohm impedance matches standard RF systems. The 2616 package size suits compact designs. Verify thermal limits against operational environments. Consider insertion loss specifications for signal integrity requirements in sensitive RF paths.

Part Context

This part belongs to the MLO LP series, utilizing multilayer organic technology. It represents KYOCERA AVX's approach to high-density passive components. The series focuses on low-profile solutions for modern electronics. It complements other signal conditioning products in the manufacturer's portfolio.

Replacement Considerations

Consult official substitution lists for verified alternatives. Cross-reference impedance and frequency specifications when evaluating potential replacements. Ensure package compatibility for direct board swaps.
