LP0AA0290A700

Overview

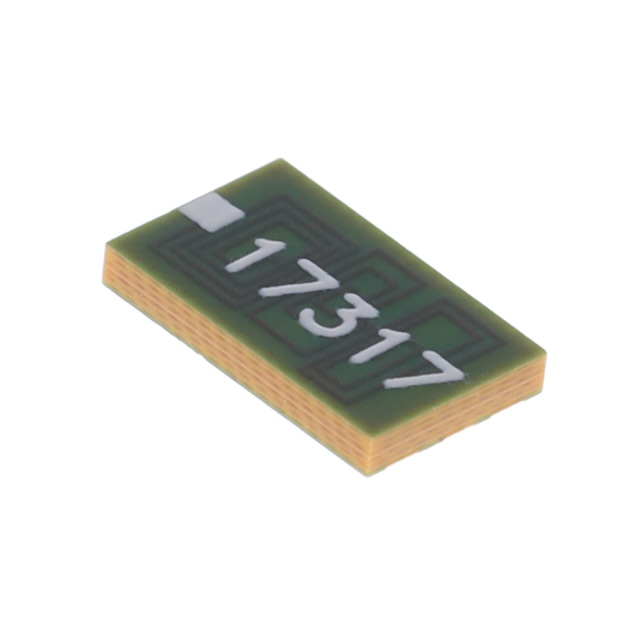

The LP0AA0290A700 is a low-pass RF filter manufactured by KYOCERA AVX, belonging to the MLO LP series. It operates at a cutoff frequency of 290 MHz with a nominal impedance of 50 Ohms. The component utilizes surface-mount technology (SMD/SMT) and is housed in a 16-ULGA package measuring 6.58mm x 3.98mm x 0.56mm. It features an insertion loss of 0.8 dB and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Supports multiple wireless standards across various frequency bands
• Ultra-thin profile design with thickness less than 1.0mm
• Surface-mount construction for board integration

Applications

• Wireless communication systems requiring signal conditioning
• RF front-end filtering applications
• Multi-standard device implementations

Procurement Notes

Verify current availability status as distribution may be limited or on special order. Confirm RoHS compliance details through official datasheets before procurement. Ensure compatibility with existing PCB footprint specifications for the 16-ULGA package. Check manufacturer documentation for any recent lifecycle changes or obsolescence notices.

Selection Notes

Select this component when a 290 MHz low-pass characteristic is required in a compact form factor. The 50 Ohm impedance matches standard RF transmission lines. Consider the 16-ULGA package dimensions for space-constrained designs. Verify thermal requirements against the specified -55°C to +85°C operating range.

Part Context

This part belongs to the MLO Low Pass Filter series from KYOCERA AVX. The series is designed to support diverse frequency bands and wireless standards. These filters are characterized by their thin profile, facilitating integration into modern electronic devices where vertical space is limited.

Replacement Considerations

Consult official substitution guides for equivalent parts within the MLO LP series. Verify that alternative components match the 290 MHz cutoff frequency and 16-ULGA package dimensions. Ensure impedance and insertion loss specifications align with system requirements.
