Product Detailed Parameters

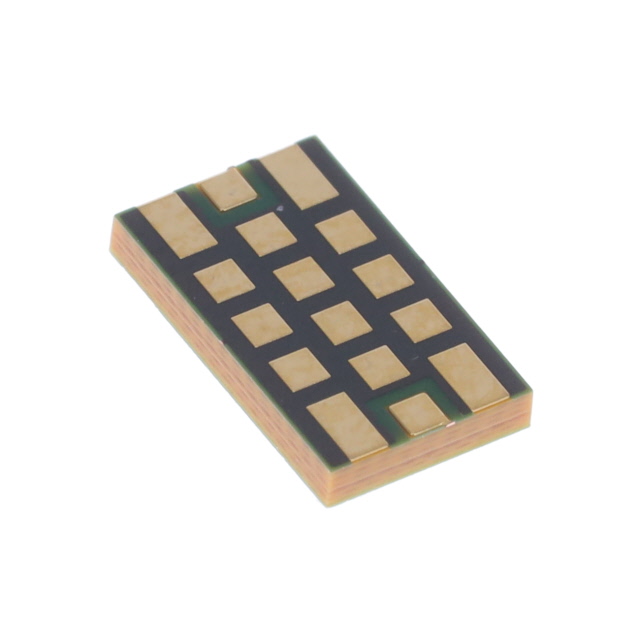

- Description：RF FILTER LOW PASS 322MHZ 16ULGA
- Series：LP
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：322MHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：16-ULGA
- Size / Dimension：0.259" L x 0.156" W (6.58mm x 3.98mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview
The KYOCERA AVX LP0AA0322A700 is a Multilayer Organic (MLO) low pass filter designed for signal conditioning in radio frequency applications. It operates with a maximum frequency of 322 MHz and features a 50 Ohm impedance. The component utilizes surface mount technology (SMD/SMT) for board mounting. It belongs to the MLO LP series and is identified by the manufacturer part number LP0AA0322A700.
Feature Summary
- Multilayer organic construction for RF filtering
- Low pass frequency response up to 322 MHz
- Surface mount device for PCB integration
Applications
- Radio frequency signal bandwidth management
- RF circuit signal conditioning
- Communication system filtering
Procurement Notes
Verify current availability and lead times directly with authorized distributors or the manufacturer, as supply status may vary. Confirm RoHS compliance details through official documentation before procurement. Ensure the specific package type matches design requirements. Check for any recent product change notices that might affect specifications or ordering information.
Selection Notes
Select this component for applications requiring low pass filtering at frequencies up to 322 MHz. The 50 Ohm impedance suits standard RF systems. Consider the Multilayer Organic technology for specific size or performance needs compared to ceramic alternatives. Verify thermal and mechanical constraints against the datasheet specifications for the intended operating environment.
Part Context
This component is part of the KYOCERA AVX MLO LP series, which specializes in low pass filters using multilayer organic technology. KYOCERA AVX is a recognized manufacturer of RF and microwave passive components, including antennas, capacitors, and various filter types. This series supports signal conditioning needs in modern electronic designs.
Replacement Considerations
Consult official substitution guides or datasheets for compatible parts within the MLO LP series. Verify electrical parameters such as cutoff frequency and impedance match before replacing. Cross-reference package dimensions and pin configurations to ensure physical compatibility on the printed circuit board.
FAQ
What is the maximum operating frequency for the LP0AA0322A700?
The maximum operating frequency is 322 MHz.
What technology is used in the construction of this filter?
It uses Multilayer Organic (MLO) technology.
