LP0AA0327A700

Overview

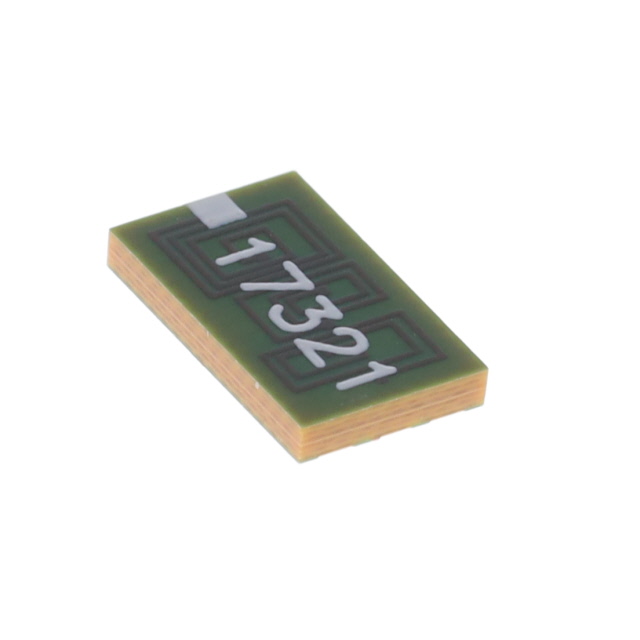

The LP0AA0327A700 is a multilayer organic (MLO) low-pass RF filter manufactured by KYOCERA AVX. Designed for signal conditioning, this component operates at a center frequency of 327 MHz with a nominal impedance of 50 Ohms. It utilizes surface-mount technology (SMD/SMT) and is housed in a compact 16-ULGA package, equivalent to the 2616 metric dimension. The device supports board mounting and functions within an operating temperature range of -55°C to +85°C. Belonging to the MLO LP series, it integrates high-frequency performance characteristics suitable for radio frequency applications.

Feature Summary

• Multilayer organic construction provides enhanced high-frequency performance
• Surface-mount design enables automated assembly processes
• Compact footprint facilitates dense circuit board layouts

Applications

• Radio frequency signal conditioning
• Communication equipment filtering
• RF front-end module integration

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer, as supply levels fluctuate. Confirm that the specific ordering suffix matches the required package and termination specifications for your design. Ensure compliance with RoHS directives and environmental declarations prior to final procurement decisions.

Selection Notes

Select this component when a 327 MHz cutoff frequency and 50 Ohm impedance are required for low-pass filtering applications. The 16-ULGA package size must align with the available PCB real estate and thermal management requirements. Consider the MLO technology benefits for superior RF performance compared to traditional ceramic alternatives in similar form factors.

Part Context

This part belongs to the MLO LP series of low-pass filters from KYOCERA AVX. These components utilize multilayer organic technology to deliver reliable signal integrity in compact designs. The series targets applications demanding precise frequency control and minimal insertion loss within constrained physical spaces.

Replacement Considerations

Consult official substitution lists for verified equivalents. Cross-reference technical parameters such as cutoff frequency, impedance, and package dimensions before considering alternative parts.
