LP0AA1590A700

Overview

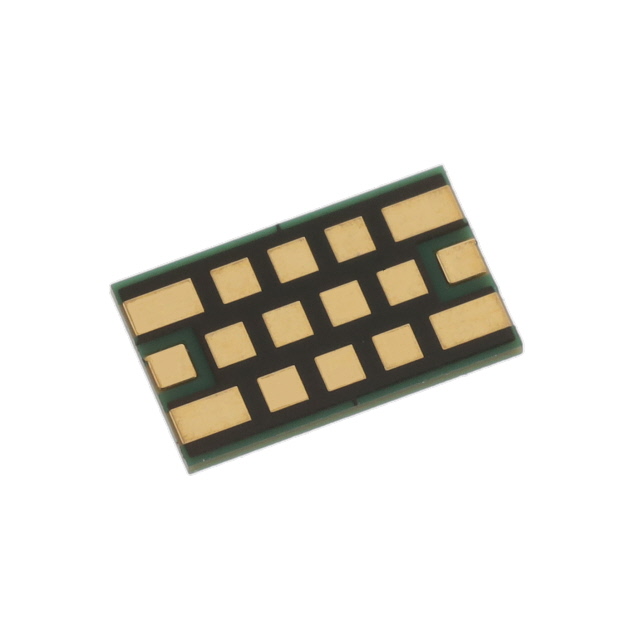

The LP0AA1590A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series. It operates at a cutoff frequency of 1.59 GHz with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination and is housed in a 2616 (6640 metric) package. It supports board mounting and functions within an operating temperature range of -55°C to +85°C.

Feature Summary

• Provides signal conditioning through low-pass filtering capabilities
• Designed for reliable performance in embedded systems
• Engineered for industrial applications requiring stable operation

Applications

• Embedded systems signal processing
• Industrial equipment RF filtering
• General signal conditioning circuits

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as supply conditions may vary. Confirm specific ordering requirements and lead times prior to procurement planning. Ensure compliance with relevant regulatory standards such as RoHS before finalizing purchase orders.

Selection Notes

Select this component for applications requiring a 1.59 GHz low-pass filter in a compact 2616 package. Ensure the design accommodates 50 Ohm impedance matching and SMD mounting constraints. Verify that the operational temperature range meets the environmental requirements of the target system.

Part Context

This part belongs to the MLO LP series of low-pass filters manufactured by KYOCERA AVX. These components are categorized under signal conditioning devices and are specifically designed for high-frequency applications. The series offers various cutoff frequencies while maintaining consistent package dimensions and impedance characteristics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official manufacturer resources for potential cross-references or alternative components within the same product family.
