LP0AA1610A700

Overview

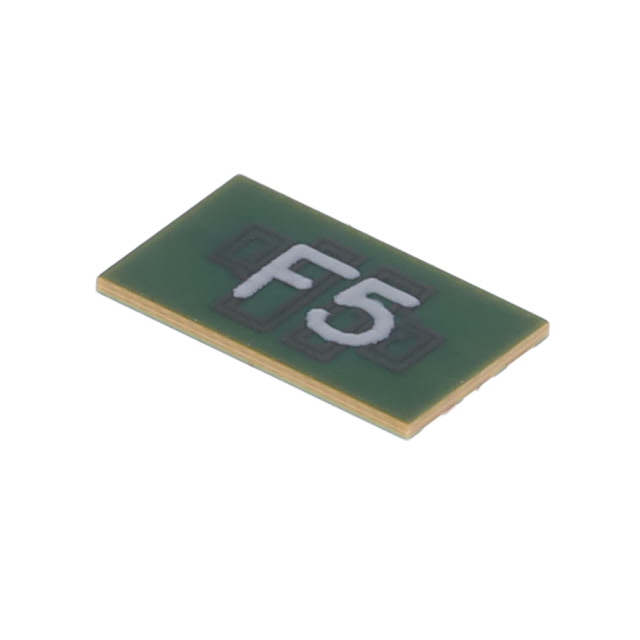

The LP0AA1610A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series. It operates at a cutoff frequency of 1.61 GHz with a 50 Ohm impedance. The component utilizes SMD/SMT termination and is housed in a 2616 (6640 metric) package. It features an insertion loss of 0.7 dB and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Provides signal conditioning via low-pass filtering characteristics
• Designed for board mount installation using surface mount technology
• Constructed for operation in demanding thermal environments

Applications

• RF signal path filtering
• Wireless communication systems
• Base station equipment

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as lead times may vary significantly. Confirm RoHS compliance details and specific ordering suffixes required for your region. Ensure the requested quantity aligns with factory packaging constraints before finalizing procurement orders.

Selection Notes

Select this component when a 1.61 GHz cutoff frequency is required for 50 Ohm systems. The 2616 package size suits compact PCB layouts. Verify that the operating temperature range meets the environmental requirements of the target application. Compare insertion loss specifications against system budget constraints.

Part Context

This part belongs to the MLO LP series of ceramic low-pass filters manufactured by KYOCERA AVX. These components are designed for high-frequency applications requiring precise signal attenuation above the cutoff point. The series offers various cutoff frequencies within the same form factor to support diverse RF design needs.

Replacement Considerations

Check datasheets for alternative parts with identical 1.61 GHz cutoff, 50 Ohm impedance, and 2616 package dimensions. Verify pinout compatibility and electrical performance curves before substitution.
