LP0AA1620A700

Overview

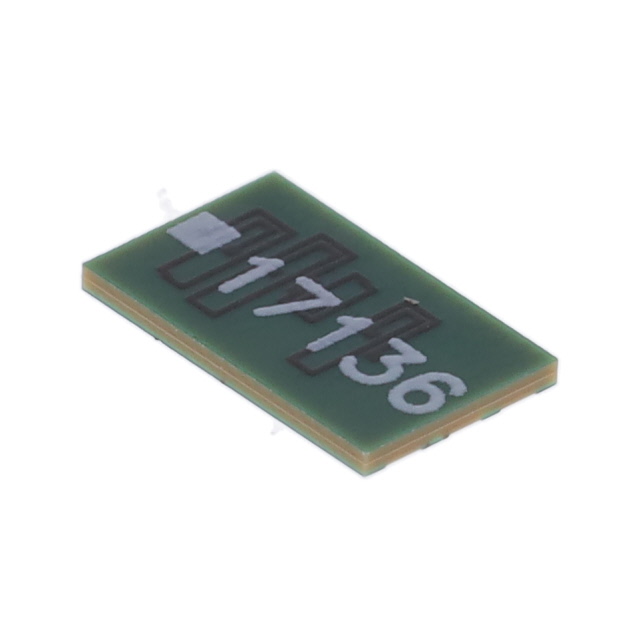

The LP0AA1620A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series, designed for signal conditioning applications. It operates at a cutoff frequency of 1.62 GHz with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination and is housed in a 2616 (6640 metric) package, measuring approximately 6.58mm x 3.98mm with a maximum height of 0.56mm. It features an insertion loss of 0.7 dB and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Provides low-pass filtering characteristics for RF signal conditioning
• Designed for board mount surface-mount technology integration
• Constructed for operation across extended industrial temperature ranges

Applications

• RF front-end modules requiring harmonic suppression
• Wireless communication systems operating near 1.62 GHz
• Signal integrity management in high-frequency circuits

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as supply chain constraints may affect immediate delivery. Confirm RoHS compliance details and specific ordering suffixes if alternative packaging options are required for your assembly process. Ensure design-in compatibility with your PCB footprint specifications before finalizing procurement plans.

Selection Notes

Select this component when a 1.62 GHz cutoff frequency and 50 Ohm system impedance are required. The 2616 package size offers a compact solution for space-constrained designs. Consider the 0.7 dB insertion loss specification for efficiency requirements. Verify that the -55°C to +85°C operating range meets your environmental conditions.

Part Context

This part belongs to the KYOCERA AVX MLO LP series of multilayer ceramic low-pass filters. These components are engineered for high-reliability RF applications. The series provides various cutoff frequencies while maintaining consistent impedance and package dimensions for design flexibility across different product lines.

Replacement Considerations

Consult official substitution guides for compatible parts within the same MLO LP series. Verify electrical parameters such as cutoff frequency and insertion loss match your design requirements. Ensure physical footprint compatibility with existing PCB layouts before considering alternatives.
