LP0AA1630A700

Overview

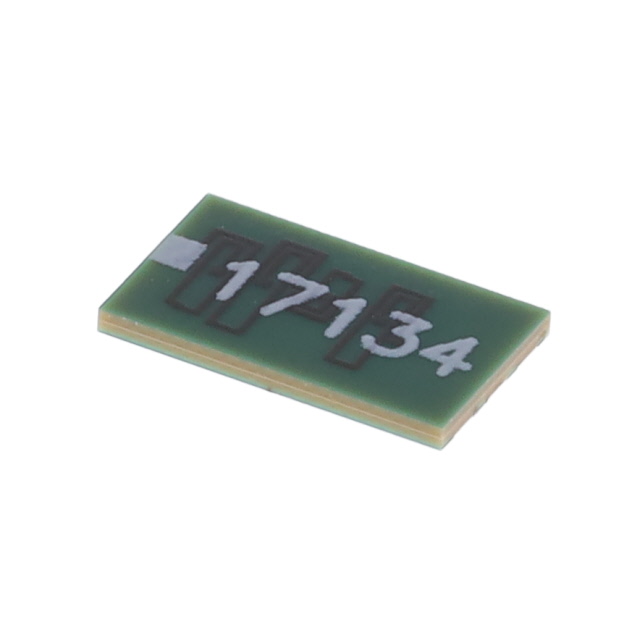

The LP0AA1630A700 is a low-pass RF filter manufactured by KYOCERA AVX. It operates at a cutoff frequency of 1.63 GHz and features a 50 Ohm impedance. The component utilizes surface-mount technology within a 16-ULGA package, measuring 6.58mm in length, 3.98mm in width, and 0.56mm in maximum height. This device belongs to the MLO series, which employs high dielectric constant materials for passive printed elements.

Feature Summary

• Utilizes high dielectric constant and low loss materials for high Q passive printed elements
• Supports multiple wireless standards and various frequency bands
• Ultra-thin profile design with thickness less than 1.0mm

Applications

• RF signal conditioning
• Wireless communication systems
• Low-pass filtering applications

Procurement Notes

Verify the specific manufacturer standard lead time, which may extend up to 99 weeks, prior to procurement planning. Confirm that the 16-ULGA surface mount package aligns with your PCB footprint requirements. Ensure the 1.63 GHz cutoff frequency and 50 Ohm impedance specifications meet the target circuit design parameters before finalizing orders.

Selection Notes

Select this component when a compact, ultra-low voltage solution is required for RF filtering below 1.63 GHz. The MLO series offers a space-saving design suitable for dense layouts. Consider the 16-ULGA package dimensions (6.58mm x 3.98mm) for board space constraints. Verify compatibility with the intended wireless standards and frequency bands supported by the high-Q passive printed elements.

Part Context

This part is part of the MLO Low Pass Filter series from KYOCERA AVX. The series is characterized by its ability to support various frequency bands and multiple wireless standards while maintaining a thickness of less than 1.0mm. These filters utilize advanced materials to achieve high performance in a small form factor, distinguishing them from traditional discrete components.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult official KYOCERA AVX resources for potential alternatives if supply chain constraints require substitution.
