LP0AA1670A700

Overview

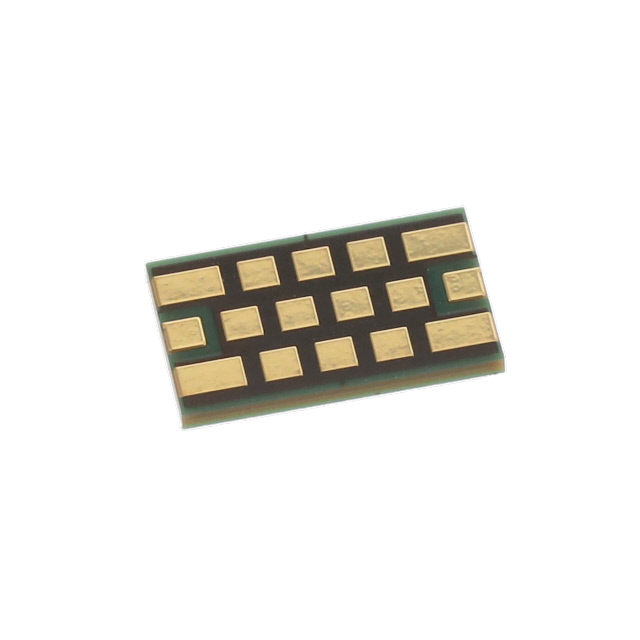

The LP0AA1670A700 is a low-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 1.67 GHz and features a 50 Ohm impedance. The component utilizes surface mount technology within a compact 16-ULGA package, measuring 6.58mm in length, 3.98mm in width, and 0.56mm in maximum height. This device belongs to the MLO series, offering specialized filtering capabilities for high-frequency electronic circuits.

Feature Summary

• Provides low-pass filtering characteristics for radio frequency signal conditioning
• Engineered for surface mount installation on printed circuit boards
• Constructed within a miniature 16-ULGA footprint for space-constrained designs

Applications

• RF signal path filtering in communication modules
• Harmonic suppression in wireless transmission circuits
• Signal conditioning in high-frequency electronic systems

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 16-ULGA package dimensions align precisely with your PCB land pattern design. Ensure that the 1.67 GHz cutoff frequency meets the exact requirements of your target application spectrum. Check for any specific handling or storage guidelines provided in the official documentation.

Selection Notes

Select this component when a low-pass filter with a 1.67 GHz cutoff frequency is required for RF applications. The 50 Ohm impedance matches standard transmission line characteristics. The small 16-ULGA package size makes it suitable for dense board layouts. Consider the operating temperature range and insertion loss specifications from the full datasheet to ensure compatibility with system performance requirements.

Part Context

This part belongs to the MLO Low Pass Filter series by KYOCERA AVX, which specializes in miniaturized passive components for RF and microwave applications. The LP0AA1670A700 specifically addresses the need for compact filtering solutions in modern wireless devices. Its design focuses on maintaining signal integrity while minimizing physical footprint in high-density electronic assemblies.

Replacement Considerations

Consult the official KYOCERA AVX replacement guide for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and mechanical dimensions against the original datasheet.
