LP0AA1680A700

Overview

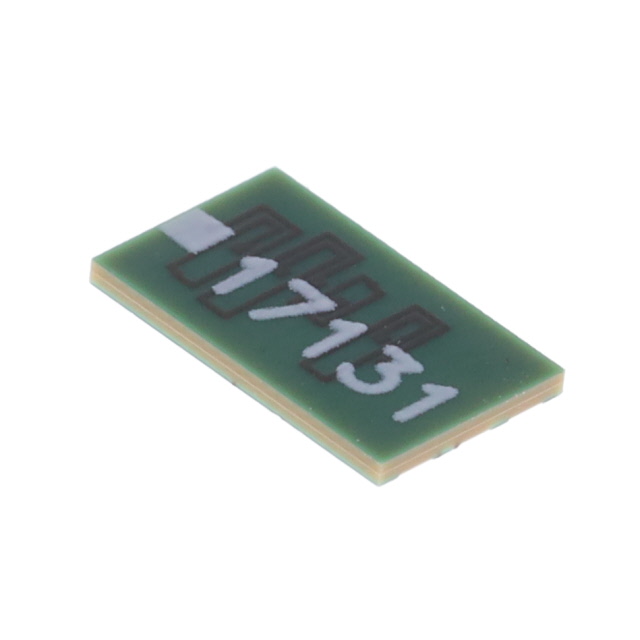

The LP0AA1680A700 is a low-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 1680 MHz with a 50 Ohm impedance. The component utilizes an SMD/SMT termination style and is housed in a compact 2616 (6640 metric) package. It supports board mounting and functions within a temperature range of -55°C to +85°C. This device belongs to the MLO LP series and is classified under Low Pass Filters.

Feature Summary

• Provides low-pass filtering characteristics for radio frequency signal conditioning
• Utilizes surface mount technology for direct board integration
• Maintains stable operation across extended industrial temperature ranges

Applications

• RF front-end modules requiring 1680 MHz band filtering
• Wireless communication systems utilizing 50 Ohm impedance networks
• Signal conditioning circuits in mobile infrastructure equipment

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as this item may be subject to factory special order constraints. Confirm RoHS compliance details and specific packaging quantities prior to finalizing procurement plans. Ensure that the ordering suffix matches the required termination and packaging specifications exactly to avoid functional mismatches.

Selection Notes

Select this component when a 1680 MHz cutoff frequency is required for low-pass filtering in RF designs. The 2616 package size offers a compact footprint suitable for space-constrained PCB layouts. Ensure the system impedance aligns with the specified 50 Ohms to maintain optimal signal integrity and minimize reflection losses during operation.

Part Context

This part belongs to the MLO LP series of low-pass filters from KYOCERA AVX. These components are engineered for high-performance RF applications, offering precise frequency control and reliable signal attenuation above the cutoff point. The series is widely used in telecommunications and wireless devices requiring robust signal conditioning.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the same series. Verify that any replacement maintains identical frequency, impedance, and package dimensions to ensure seamless integration without redesigning the host circuit board.
