LP0AA2300A700

Overview

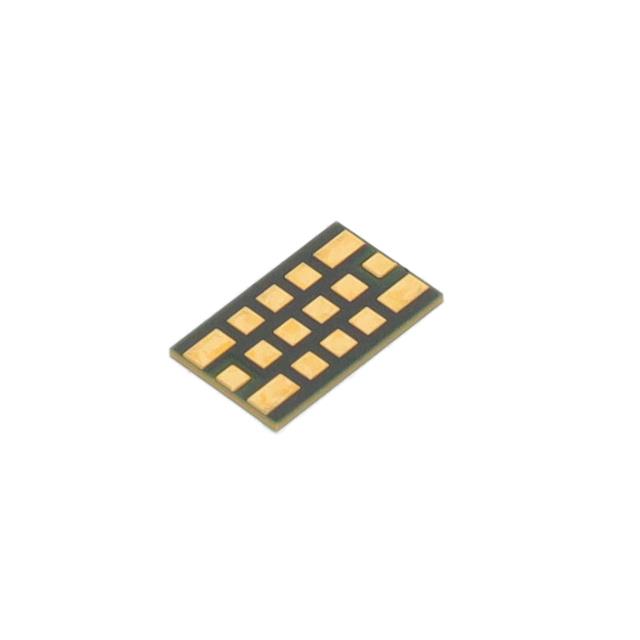

The LP0AA2300A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series, designed for signal conditioning applications. It operates at a cutoff frequency of 2300 MHz with a nominal impedance of 50 Ohms. The component utilizes an SMD/SMT termination type and is housed in a compact 2616 (6640 metric) package. It features board mount installation and maintains an insertion loss of 0.7 dB. The device supports a minimum operating temperature of -55 C and a maximum operating temperature of +85 C.

Feature Summary

• Provides low-pass filtering characteristics for radio frequency signal conditioning
• Utilizes a compact 2616 surface-mount package design
• Maintains a standard 50 Ohm system impedance

Applications

• RF signal path filtering
• Wireless communication systems
• Signal conditioning circuits

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as supply conditions may vary. Confirm that the specific part number matches the required electrical specifications and package dimensions for your design. Ensure compliance with relevant environmental regulations and RoHS standards before finalizing procurement decisions.

Selection Notes

Select this component when a low-pass filter with a 2300 MHz cutoff frequency is required within a 50 Ohm system. The 2616 package size offers a balance between performance and board space efficiency. Consider the specified temperature range and insertion loss values to ensure compatibility with the intended operational environment and signal integrity requirements.

Part Context

This component belongs to the MLO LP series of low-pass filters manufactured by KYOCERA AVX. The series is engineered for signal conditioning tasks requiring precise frequency control. The LP0AA2300A700 variant specifically targets applications needing attenuation above 2300 MHz while preserving lower frequency signals.

Replacement Considerations

Consult official datasheets to identify compatible substitutes within the same series or from other manufacturers. Verify that any alternative part matches the 2300 MHz cutoff, 50 Ohm impedance, and 2616 package footprint to ensure seamless integration without redesigning the circuit layout.
