LP0AA2590A700

Overview

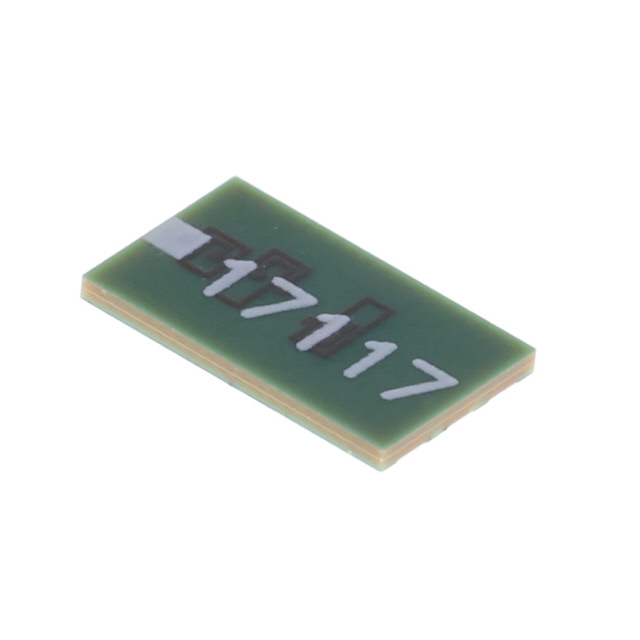

The LP0AA2590A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series, designed for signal conditioning applications. It operates at a cutoff frequency of 2.59 GHz with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination and is housed in a 2616 (6640 metric) package, measuring approximately 6.58mm x 3.98mm with a maximum height of 0.56mm. It features an insertion loss of 0.7 dB and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Provides low-pass filtering characteristics for RF signal conditioning
• Designed for board mount surface-mount technology integration
• Constructed for operation in demanding thermal environments

Applications

• RF front-end modules requiring harmonic suppression
• Wireless communication systems operating near 2.59 GHz
• Signal integrity management in high-frequency circuits

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as supply constraints may exist. Confirm RoHS compliance details and specific ordering suffixes if required for your bill of materials. Ensure that the 2616 package dimensions align with your PCB footprint design before finalizing procurement decisions.

Selection Notes

Select this component when a 50 Ohm low-pass filter is needed for frequencies around 2.59 GHz. The 2616 package size offers a compact solution for space-constrained designs. Consider the 0.7 dB insertion loss specification for signal attenuation requirements. Verify compatibility with automated assembly processes given the surface-mount nature of the device.

Part Context

This part belongs to the MLO LP series of multilayer ceramic low-pass filters from KYOCERA AVX. These components are engineered for high-performance RF applications where small form factors and reliable signal filtering are critical. The series supports various frequency points tailored for modern wireless standards.

Replacement Considerations

Check for direct substitutes within the same MLO LP series with adjusted cutoff frequencies if exact matching is not possible. Ensure any replacement maintains the 2616 package outline and 50 Ohm impedance to preserve board layout integrity.
