LP0AA2640A700

Overview

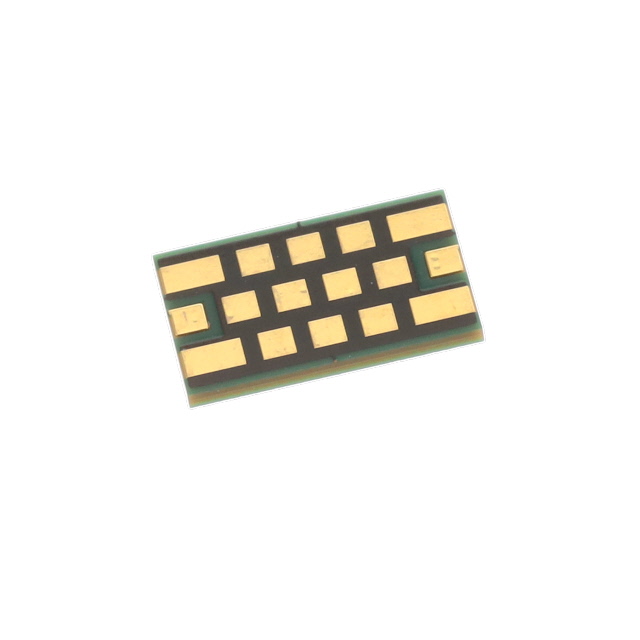

The LP0AA2640A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series. It operates at a cutoff frequency of 2.64 GHz with a 50 Ohm impedance. The component utilizes SMD/SMT termination and is housed in a 2616 (6640 metric) package. It supports board mounting and functions within an operating temperature range of -55 C to +85 C.

Feature Summary

• Provides signal conditioning via low-pass filtering characteristics
• Designed for radio frequency applications requiring specific bandwidth control
• Constructed for reliable surface-mount integration on printed circuit boards

Applications

• Radio frequency signal processing
• Communication system filtering
• Electronic equipment signal conditioning

Procurement Notes

Verify current availability directly with the manufacturer or authorized distributors, as this item may be subject to factory special order status. Confirm RoHS compliance details and specific datasheet parameters before finalizing procurement decisions to ensure alignment with project requirements.

Selection Notes

Select this component when a 2.64 GHz low-pass filter is required for RF circuits. Ensure the design accommodates the 2616 package dimensions and 50 Ohm system impedance. Verify that the operational temperature range meets the environmental conditions of the intended application.

Part Context

This part belongs to the MLO LP series of low-pass filters manufactured by KYOCERA AVX. These components are engineered for signal conditioning in electronic systems. The series offers various cutoff frequencies while maintaining consistent package and impedance specifications for standardized integration.

Replacement Considerations

Consult official documentation for confirmed substitute part numbers. Cross-referencing requires matching cutoff frequency, impedance, and package type to ensure functional equivalence without compromising circuit performance.
