LP0AA2910A700

Overview

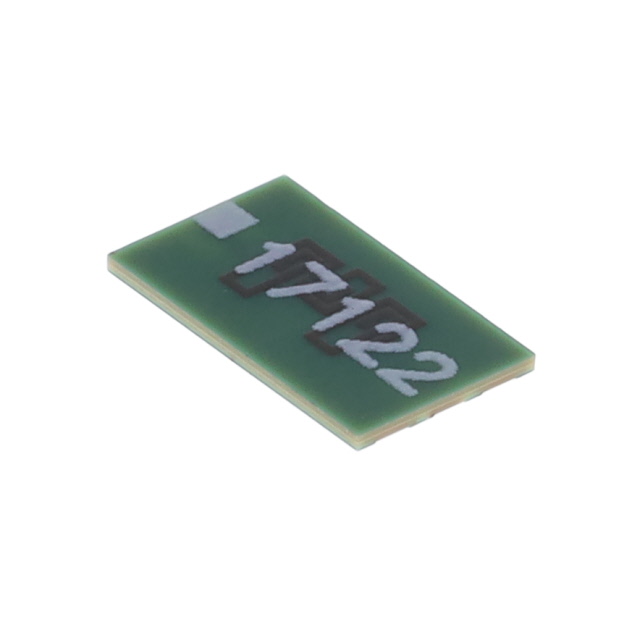

The LP0AA2910A700 is a surface-mount low-pass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 2.91 GHz with a 50 Ohm impedance. The component utilizes an SMD/SMT termination type and is housed in a 2616 (6640 metric) package. It supports board mounting and functions within a temperature range of -55°C to +85°C. The device belongs to the MLO LP series and features an insertion loss of 0.7 dB.

Feature Summary

• Surface-mount low-pass filter design for RF signal conditioning
• Optimized for 2.91 GHz operational frequency
• Compact 2616 package footprint for space-constrained layouts

Applications

• RF front-end filtering in wireless communication systems
• Signal conditioning in microwave circuits
• Harmonic suppression in high-frequency transmitters

Procurement Notes

Verify current availability status as distribution may be restricted in certain regions. Confirm lead times directly with authorized suppliers due to potential manufacturing delays. Ensure compatibility with existing PCB footprints and soldering profiles before finalizing procurement orders.

Selection Notes

Select this component when a precise 2.91 GHz cutoff is required in a compact form factor. Consider the 2616 package dimensions for layout constraints. Verify that the 50 Ohm impedance matches system requirements. Evaluate thermal performance within the specified -55°C to +85°C operating range for environmental suitability.

Part Context

This part belongs to the KYOCERA AVX MLO LP series of low-pass filters. These components are engineered for high-performance RF applications requiring stable attenuation characteristics above the cutoff frequency. The series offers various cutoff frequencies tailored to specific microwave and millimeter-wave design needs.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
