LP0AA2980A700

Overview

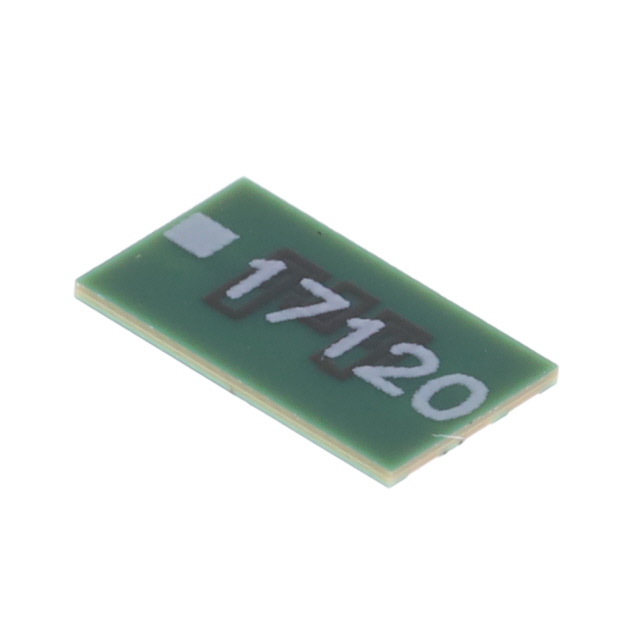

The LP0AA2980A700 is a low-pass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a frequency of 2.98 GHz with a nominal impedance of 50 Ohms. The component utilizes surface mount technology (SMD/SMT) and is housed in a 2616 (6640 metric) package, also identified as 16-ULGA. It features an insertion loss of 0.7 dB and supports board mounting. The device functions within a temperature range of -55°C to +85°C and belongs to the MLO LP series.

Feature Summary

• Utilizes thin-film multilayer technology for high-frequency performance
• Provides low insertion loss for efficient signal transmission
• Designed for surface-mount integration in compact circuits

Applications

• RF signal conditioning
• Wireless communication systems
• Base station equipment filtering

Procurement Notes

Verify current availability status directly with the manufacturer or authorized distributors, as supply may be restricted. Confirm RoHS compliance details and specific ordering requirements prior to procurement. Factory special order conditions may apply; obtain official quotes to validate lead times and pricing structures. Ensure compatibility with existing supply chain protocols before finalizing acquisition plans.

Selection Notes

Select this component when a 2.98 GHz cutoff frequency is required for RF applications. The 50 Ohm impedance matches standard transmission lines. The 2616 package size suits space-constrained designs requiring SMT assembly. Verify thermal operating limits against environmental conditions. Consider the MLO LP series characteristics for consistent performance in signal processing tasks.

Part Context

This part belongs to the MLO LP series of low-pass filters from KYOCERA AVX. These components are engineered for radio frequency signal conditioning. The series emphasizes reliability and performance in high-frequency environments. The LP0AA2980A700 specifically targets applications requiring precise filtering at 2.98 GHz.

Replacement Considerations

Consult official substitution lists for compatible parts. Cross-reference specifications such as cutoff frequency, impedance, and package dimensions. Verify electrical performance equivalence before replacing the component in existing designs.
