LP0AA3100A700

Overview

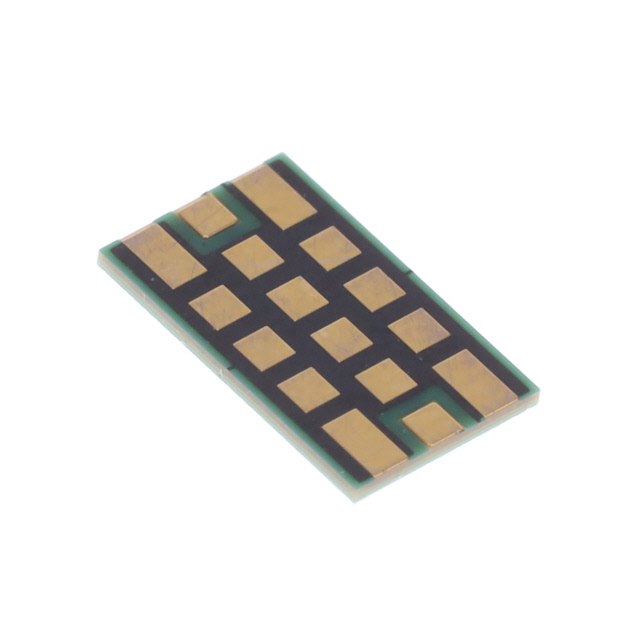

The LP0AA3100A700 is a space-qualified RF low-pass filter manufactured by KYOCERA AVX. It operates with a frequency range from DC to 3.1 GHz, featuring a center frequency of 1550 MHz and a cut-off frequency of 3.65 GHz. The component utilizes a 16-ULGA surface-mount package with dimensions of 6.58mm x 3.96mm (0.259" L x 0.156" W). Designed for high-reliability environments, it supports board mounting and is packaged in bulk.

Feature Summary

• Space-qualified reliability for aerospace applications
• Low-pass filtering characteristic up to 3.1 GHz
• Surface-mount 16-ULGA package design

Applications

• Satellite communication systems
• Spaceborne RF signal processing
• High-reliability aerospace electronics

Procurement Notes

Verify the specific space qualification status and environmental test reports directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 16-ULGA package dimensions and pinout match your PCB layout requirements. Ensure the supplier provides traceability documentation required for space-grade components. Check for any recent engineering change notices that might affect performance specifications.

Selection Notes

Select this component when designing circuits requiring certified space-qualified low-pass filters. The 3.1 GHz bandwidth and 1550 MHz center frequency suit specific satellite bands. Consider the 16-ULGA footprint during mechanical design. Evaluate thermal management needs as the device operates in extreme environments. Compare against other MLO series parts if different cutoff frequencies are needed.

Part Context

This part belongs to the KYOCERA AVX MLO series of microwave low-pass filters. The manufacturer specializes in electronic components for demanding applications. The LP0AA3100A700 represents their capability to produce space-rated RF devices. The series typically includes various cutoff frequencies and package options for different RF system requirements.

Replacement Considerations

Check for LP0AA3100A7** variants which may share similar electrical characteristics but differ in packaging or qualification levels. Verify compatibility with existing board layouts due to the specific 16-ULGA form factor.
