Product Detailed Parameters

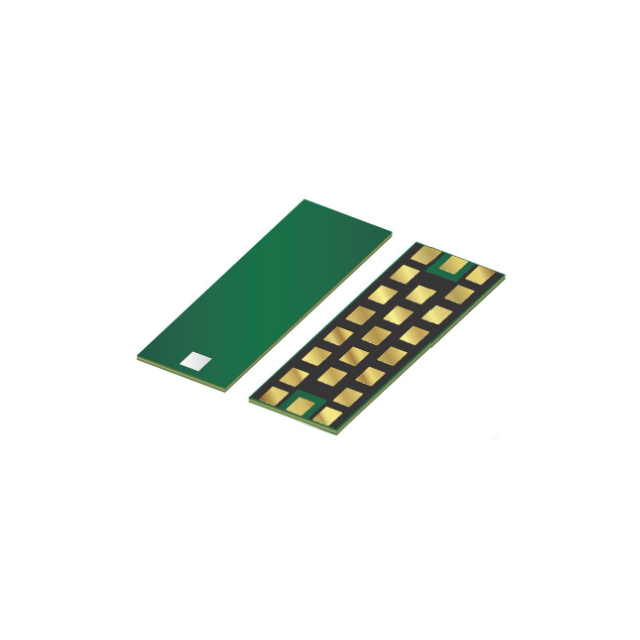

- Description：RF FILTER LOWPASS 3.16GHZ 16ULGA
- Series：LP
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR),Cut Tape (CT)
- Frequency：3.16GHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：16-ULGA
- Size / Dimension：0.259" L x 0.156" W (6.58mm x 3.98mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview
The LP0AA3160A7TR250 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series. It operates at a cutoff frequency of 3.16 GHz with a nominal impedance of 50 Ohms. The component utilizes a 3116 package (metric equivalent 7840) and is designed for signal conditioning applications. It supports SMD/SMT termination types and functions within an operating temperature range of -55°C to +85°C.
Feature Summary
- Provides low-pass signal filtering characteristics for RF applications
- Designed for surface-mount board mounting processes
- Constructed within the MLO LP product family
Applications
- RF signal conditioning circuits
- Wireless communication systems
- General-purpose low-pass filtering in electronic assemblies
Procurement Notes
Verify the specific manufacturer part number against official KYOCERA AVX documentation before procurement. Confirm that the requested suffix matches the required packaging format, as variations exist between reel and tape configurations. Ensure compatibility with standard SMD assembly equipment and verify compliance with current RoHS directives applicable to your region.
Selection Notes
Select this component when a 3.16 GHz low-pass response is required in a compact form factor. The 3116 package size offers a balance between performance and board space efficiency. Ensure the system impedance matches the 50 Ohm specification to maintain signal integrity. Verify thermal requirements align with the specified -55°C to +85°C operating range.
Part Context
This component belongs to the MLO LP series of low-pass filters manufactured by KYOCERA AVX. The series is characterized by its use in signal conditioning roles within RF environments. The manufacturer specializes in capacitors, circuit protection, connectors, and RF/microwave components, providing a broad portfolio for electronic design engineers.
Replacement Considerations
Consult official KYOCERA AVX substitution guides for verified alternatives. Generic cross-references may not match the specific electrical characteristics or physical dimensions of the MLO LP series.
