LP0AA4150A700

Overview

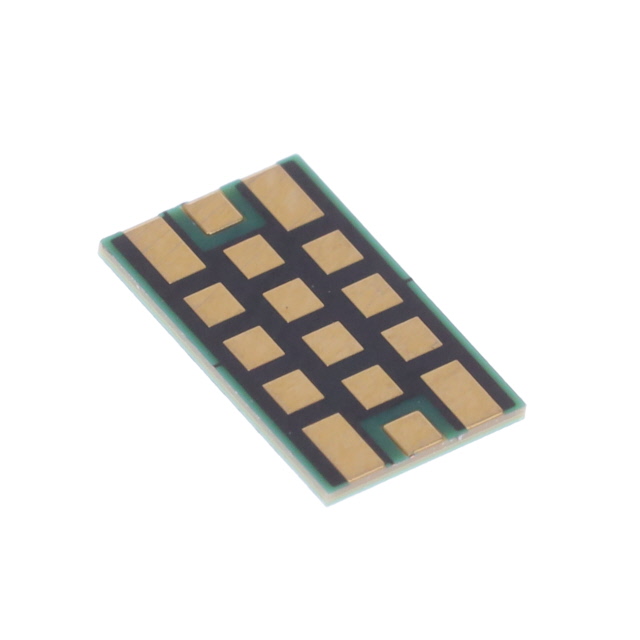

The LP0AA4150A700 is a low-pass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 4.15 GHz with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination and is housed in a compact 2616 (6640 metric) package. It features an insertion loss of 0.8 dB and functions within a temperature range of -55°C to +85°C. This device belongs to the MLO LP series and is intended for board mounting.

Feature Summary

• Provides low-pass filtering characteristics for RF signal conditioning
• Utilizes Multilayer Organic (MLO) technology for compact integration
• Designed for surface-mount assembly on printed circuit boards

Applications

• RF front-end modules requiring low-pass filtering
• Wireless communication systems operating near 4.15 GHz
• Signal conditioning circuits in mobile devices

Procurement Notes

Verify current product status as sources indicate this part may be marked Not For New Designs or End-of-Life. Confirm availability through authorized distributors as lead times may vary significantly. Ensure compatibility with existing PCB footprints and thermal requirements before finalizing procurement decisions.

Selection Notes

Select this component when a 4.15 GHz low-pass filter is required in a 2616 package. Ensure the system impedance matches 50 Ohms. Consider the -55°C to +85°C operating range for environmental suitability. Verify that the 0.8 dB insertion loss meets system budget constraints.

Part Context

This component is part of the KYOCERA AVX MLO LP series, which focuses on low-pass filters using multilayer organic technology. These components are engineered for high-frequency applications where size and performance are critical. The series supports various cutoff frequencies tailored for modern wireless standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to potential end-of-life status, consult manufacturer resources for direct replacements or equivalent series components with matching electrical specifications.
