Product Detailed Parameters

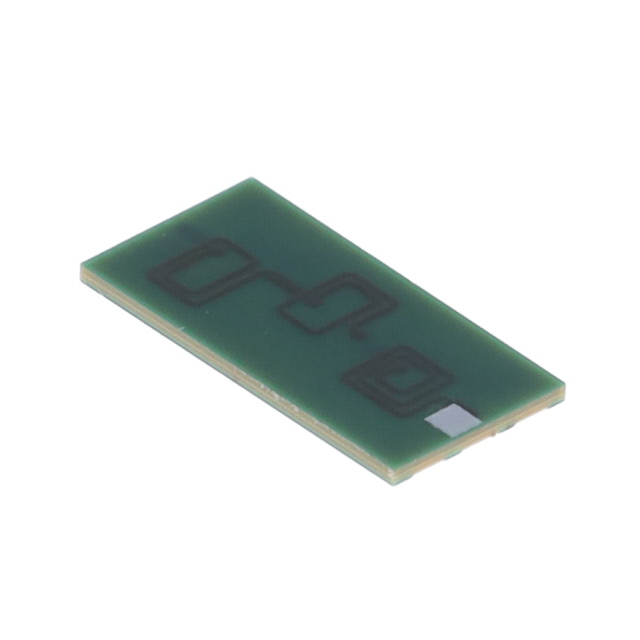

- Description：RF FILTER LOW PASS 960MHZ 19ULGA
- Series：LP
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：960MHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：19-ULGA
- Size / Dimension：0.306" L x 0.156" W (7.79mm x 3.98mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview
The LP0BA0960A700 is a surface-mount low-pass RF filter manufactured by KYOCERA AVX. It operates at a cutoff frequency of 960 MHz with a nominal insertion loss of 0.96 dB and a system impedance of 50 Ohms. The component utilizes a 17-pin 3116 (7840 metric) package designed for board mounting. It belongs to the MLO LP series and supports an operating temperature range from -55°C to +85°C.
Feature Summary
- Provides signal conditioning via low-pass filtering characteristics
- Engineered for radio frequency applications
- Designed for surface-mount technology integration
Applications
- RF signal processing circuits
- Communication equipment filtering
- Signal conditioning modules
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX before procurement. Confirm that the 3116 package dimensions align with your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the part number with official manufacturer catalogs to confirm current production status and availability constraints.
Selection Notes
Select this component when a 960 MHz cutoff frequency is required for 50 Ohm systems. The 3116 package size dictates the available board space. Consider the -55°C to +85°C operating range for environmental suitability. Verify that the 0.96 dB insertion loss meets your signal integrity budget. Compare against other MLO LP series variants if different frequencies are needed.
Part Context
This part belongs to the KYOCERA AVX MLO LP series, which focuses on signal conditioning components. The series includes various low-pass filters tailored for RF applications. These components are designed to integrate into modern electronic systems requiring precise frequency management and signal purity.
Replacement Considerations
Consult official KYOCERA AVX documentation for verified substitute part numbers within the MLO LP series. Do not assume compatibility based on similar package sizes or general frequency ranges without explicit manufacturer confirmation.
