LP0BA1010A700

Overview

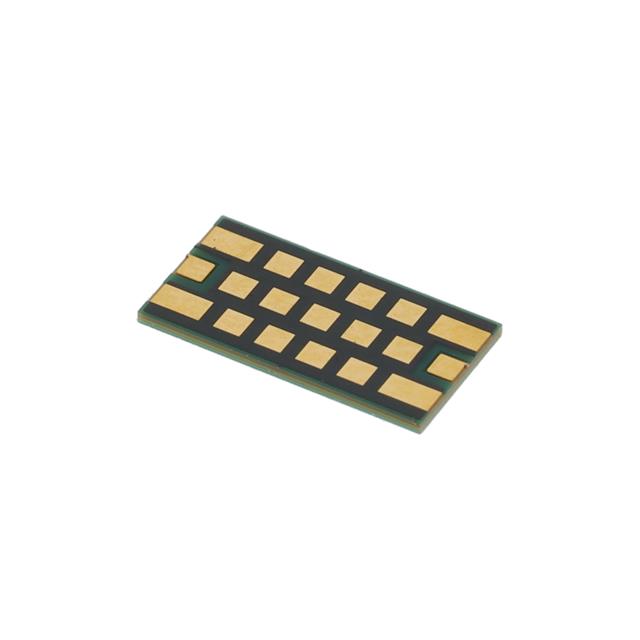

The LP0BA1010A700 is a low-pass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates with a maximum frequency of 1.01 GHz and utilizes Multilayer Organic (MLO) technology. The component features a 50 Ohm impedance and is housed in a compact surface-mount package suitable for board mounting. This device is engineered to attenuate high-frequency signals above its cutoff point, ensuring effective radio frequency management within electronic circuits.

Feature Summary

• Utilizes Multilayer Organic (MLO) technology for RF filtering
• Designed as a low-pass filter for signal conditioning
• Operates at a maximum frequency of 1.01 GHz
• Features 50 Ohm impedance for standard RF integration

Applications

• Radio frequency circuitry
• Signal conditioning systems
• High-frequency signal attenuation

Procurement Notes

Verify the specific datasheet for the LP0BA1010A700 to confirm current manufacturing status and detailed electrical characteristics. Contact the manufacturer or authorized distributors directly to obtain accurate availability information and ordering requirements. Ensure that the component meets all necessary environmental and compliance standards for your specific design implementation before finalizing procurement decisions.

Selection Notes

Select this component when a low-pass filter with a 1.01 GHz cutoff is required for RF applications. The MLO technology offers a compact form factor suitable for space-constrained designs. Ensure the system impedance matches the 50 Ohm specification. Consider the operating temperature range and surface-mount packaging compatibility during the selection process to ensure proper integration into the target PCB layout.

Part Context

This part belongs to the KYOCERA AVX portfolio of RF filters and signal conditioning components. The manufacturer specializes in advanced electronic components for various industries. The LP0BA series represents their multilayer organic filter offerings, providing solutions for managing high-frequency signals in modern electronic devices through specialized thin-film and organic technologies.

Replacement Considerations

Consult official KYOCERA AVX documentation for confirmed substitute part numbers. Verify that any replacement maintains the 1.01 GHz cutoff frequency, 50 Ohm impedance, and compatible surface-mount package dimensions to ensure functional equivalence in the existing circuit design.
