LP0BA1030A700

Overview

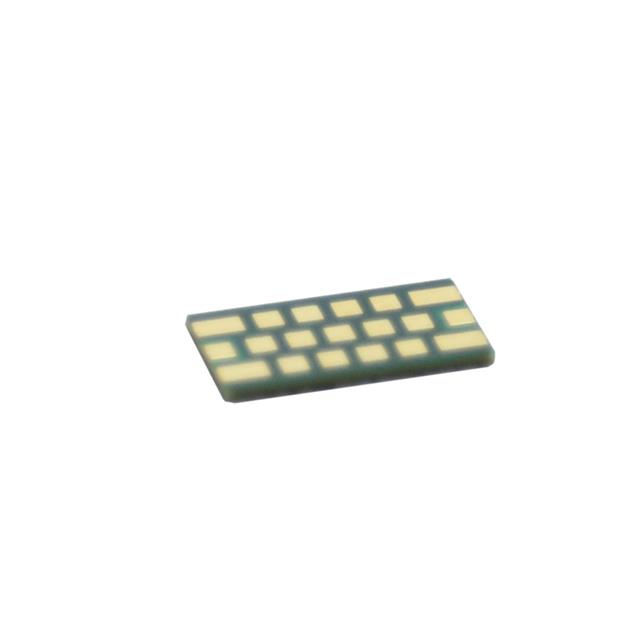

The LP0BA1030A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO LP series, designed for signal conditioning applications. It operates at a cutoff frequency of 1030 MHz with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination and is housed in a 3116 (7840 metric) package. It supports board mounting and functions within an operating temperature range of -55°C to +85°C.

Feature Summary

• Provides low-pass filtering characteristics for RF signal conditioning
• Designed for surface-mount technology integration
• Operates at standard 50 Ohm system impedance

Applications

• RF signal conditioning circuits
• Wireless communication systems requiring low-pass filtering
• Board-mounted electronic assemblies

Procurement Notes

Verify current availability and lead times directly with authorized distributors or the manufacturer, as supply status may vary. Confirm that the 3116 package dimensions align with your PCB footprint requirements. Ensure environmental specifications meet operational needs, specifically the -55°C to +85°C range. Check for RoHS compliance documentation if required by your manufacturing standards. Validate ordering quantities against distributor minimums.

Selection Notes

Select this component when a 1030 MHz low-pass response is required in a compact 3116 package. It is suitable for designs needing 50 Ohm impedance matching in surface-mount layouts. Consider the MLO LP series compatibility if integrating with other components from the same family. Evaluate thermal performance within the specified -55°C to +85°C range for your specific application environment.

Part Context

This part belongs to the KYOCERA AVX MLO LP series of low-pass filters. These components are engineered for RF signal conditioning tasks. The series offers various cutoff frequencies and package sizes to suit different design constraints. The LP0BA1030A700 specifically targets applications requiring filtering around the 1 GHz range.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers within the MLO LP series. Cross-reference cutoff frequencies and package dimensions to ensure functional equivalence. Verify impedance and temperature ratings match original design requirements before substitution.
