LP0BA1390A700

Overview

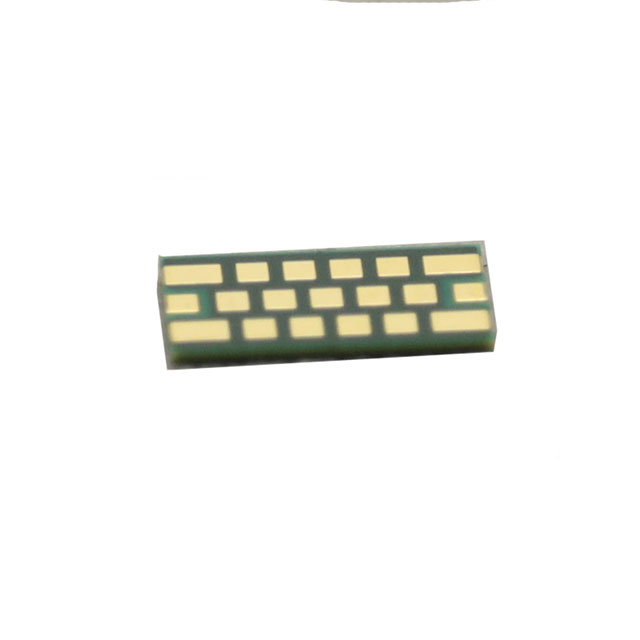

The LP0BA1390A700 is a surface-mount low-pass RF filter manufactured by KYOCERA AVX. It operates at a cutoff frequency of 1.39 GHz with a nominal impedance of 50 Ohms. The component utilizes a 21-pin 3116 package, measuring 3.116 mm in length and 1.6 mm in width. It features an insertion loss of 1.39 dB and is designed for automotive applications. The device supports board mounting and complies with RoHS standards.

Feature Summary

• Provides signal conditioning via low-pass filtering characteristics
• Engineered specifically for automotive application environments
• Utilizes a compact surface-mount technology package

Applications

• Automotive RF signal processing
• Low-pass filtering in 50 Ohm systems
• Signal conditioning for high-frequency circuits

Procurement Notes

Verify the specific datasheet version and lead times directly with authorized distributors or the manufacturer. Confirm that the 21-pin 3116 package dimensions match your PCB footprint requirements. Ensure compliance with automotive qualification standards if used in vehicle electronics. Check for any recent discontinuation notices or alternative package options.

Selection Notes

Select this component when a 1.39 GHz low-pass response is required in a 50 Ohm system. The 21-pin 3116 SMT package offers a small form factor suitable for space-constrained designs. Consider its automotive rating if the application demands reliability under varying environmental conditions typical of vehicular electronics.

Part Context

This part belongs to the KYOCERA AVX RF filter portfolio, which includes various SAW and ceramic filters. The LP series typically denotes low-pass configurations within their signal conditioning lineup. These components are engineered for high-frequency performance in telecommunications and automotive sectors.

Replacement Considerations

Consult official substitution guides for equivalent low-pass filters with matching 1.39 GHz cutoff and 50 Ohm impedance. Verify pin compatibility for the 21-pin 3116 package before replacing. Ensure any substitute meets the same automotive qualification standards.
