LP0CA0550A700

Overview

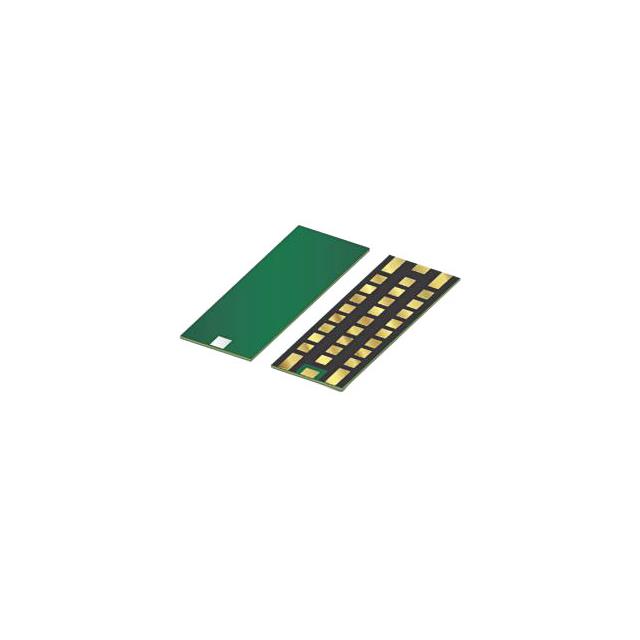

The LP0CA0550A700 is a surface-mount low-pass filter from the KYOCERA AVX MLO series, designed for signal conditioning applications. It operates at a cutoff frequency of 550 MHz with a nominal impedance of 50 Ohms. The component utilizes an SMD/SMT termination type and is housed in a 3416 (8740 metric) package, also identified as 23-ULGA. It supports board mounting and functions within a temperature range of -55°C to +85°C.

Feature Summary

• Provides low-pass filtering characteristics for RF signal conditioning
• Designed for surface-mount technology integration
• Constructed for operation within specified industrial temperature limits

Applications

• RF signal path filtering
• Signal conditioning circuits
• Microwave system components

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX before procurement. Confirm that the 3416 package dimensions align with your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the manufacturer part number to avoid confusion with similar MLO series variants.

Selection Notes

Select this component when a 550 MHz low-pass response is required in a compact surface-mount form factor. The 50 Ohm impedance matches standard RF transmission lines. Consider the 3416 package size for space-constrained designs. Verify thermal performance against the -55°C to +85°C operational range for your specific application environment.

Part Context

This component belongs to the MLO Low Pass Filter series by KYOCERA AVX, which specializes in RF and microwave passive components. The MLO line offers various cutoff frequencies and package options for signal integrity management. KYOCERA AVX is a subsidiary of Kyocera Corporation, focusing on capacitors, connectors, and RF devices for global electronic markets.

Replacement Considerations

Consult official KYOCERA AVX documentation for direct substitutes within the MLO series. Verify equivalent cutoff frequencies and impedance ratings when considering alternatives. No specific public substitute part numbers are confirmed in available data.
