LP0EA0076A700

Overview

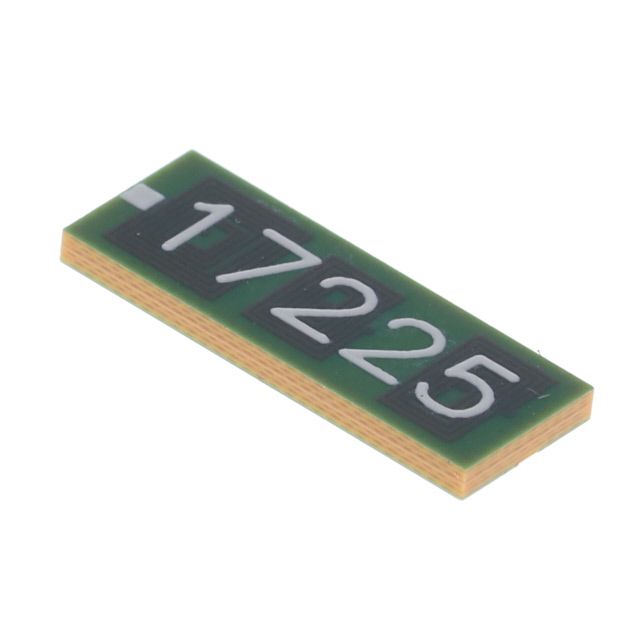

The LP0EA0076A700 is a surface-mount low-pass filter manufactured by KYOCERA AVX. It operates at a cutoff frequency of 76 MHz with a system impedance of 50 Ohms. The component utilizes a 30-SMD, no-lead package style for direct board integration. Classified under signal conditioning products, it serves as an RF filter designed to attenuate high-frequency signals while passing lower frequencies.

Feature Summary

• Provides low-pass filtering characteristics for radio frequency signal conditioning
• Designed for surface-mount technology (SMT) assembly processes
• Engineered for 50 Ohm impedance matching in RF circuits

Applications

• RF signal path filtering in communication systems
• Signal conditioning in electronic test and measurement equipment
• Noise suppression in broadband data transmission interfaces

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with KYOCERA AVX or authorized distributors before procurement. Confirm that the 30-SMD package dimensions align with your PCB footprint requirements. Ensure the 76 MHz cutoff frequency meets the design specifications for the intended RF application environment.

Selection Notes

Select this component when a fixed 76 MHz low-pass response is required in a 50 Ohm system. The SMD form factor suits automated assembly lines. Consider thermal management and placement proximity to sensitive RF traces. Validate insertion loss and return loss parameters against the specific circuit simulation models provided by the manufacturer.

Part Context

This part belongs to the KYOCERA AVX RF filter portfolio, which includes various passive components for microwave and RF applications. The company specializes in capacitors, filters, and crystal devices for industrial, automotive, and aerospace sectors. This specific model addresses needs for compact, high-performance signal conditioning in modern electronic designs.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers within the same series. Cross-reference electrical parameters such as cutoff frequency, impedance, and package type to ensure functional equivalence. Do not assume compatibility with generic low-pass filters without verifying specific performance metrics.
