LP0EA0080A700

Overview

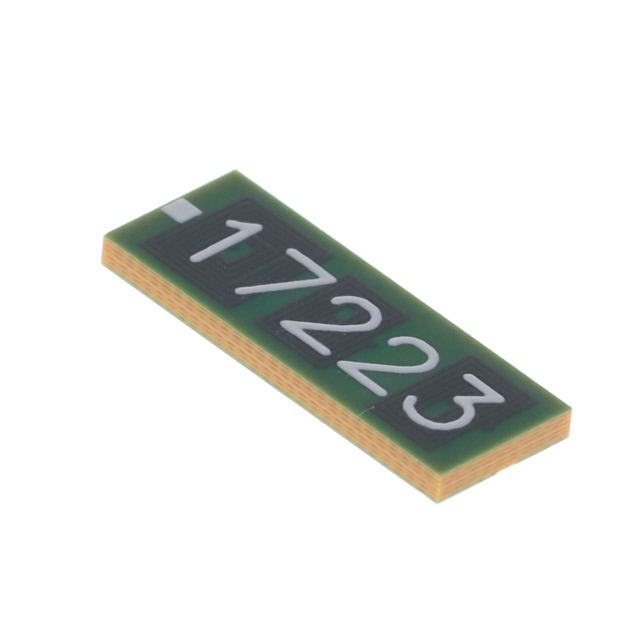

The LP0EA0080A700 is a low-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 80 MHz with a 50 Ohm impedance. The component utilizes a surface-mount technology (SMD/SMT) package in the 30-SMD, No Lead configuration, measuring 11.68mm in length and 4.32mm in width. It belongs to the MLO LP series and supports board mounting within an operating temperature range of -55°C to +85°C.

Feature Summary

• Provides low-pass filtering characteristics for radio frequency signal conditioning.
• Utilizes a compact surface-mount design suitable for automated assembly processes.

Applications

• RF signal path filtering
• Signal conditioning circuits
• Communication equipment front-ends

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer, as inventory levels fluctuate. Confirm RoHS compliance documentation and specific packaging requirements prior to ordering. Ensure that the procurement channel is authorized to guarantee component authenticity and traceability. Check for any recent product change notifications or lifecycle status updates before finalizing purchase orders.

Selection Notes

Select this component when a low-pass filter with an 80 MHz cutoff frequency and 50 Ohm system impedance is required. The 30-SMD package size must fit the designated PCB footprint constraints. Consider the operating temperature range of -55°C to +85°C against environmental conditions. Verify that the insertion loss specifications meet the system's signal integrity requirements.

Part Context

This part belongs to the MLO LP series of low-pass filters from KYOCERA AVX. These components are engineered for high-performance RF applications requiring precise frequency control. The series offers various cutoff frequencies and package sizes to accommodate different circuit board layouts and signal processing needs within modern electronic devices.

Replacement Considerations

Consult official KYOCERA AVX documentation for verified substitute part numbers. Cross-reference cutoff frequencies, impedance values, and physical dimensions to ensure compatibility. Do not assume interchangeability based on generic specifications alone; verify electrical performance data for the specific application context.
