LP0EA0082A700

Overview

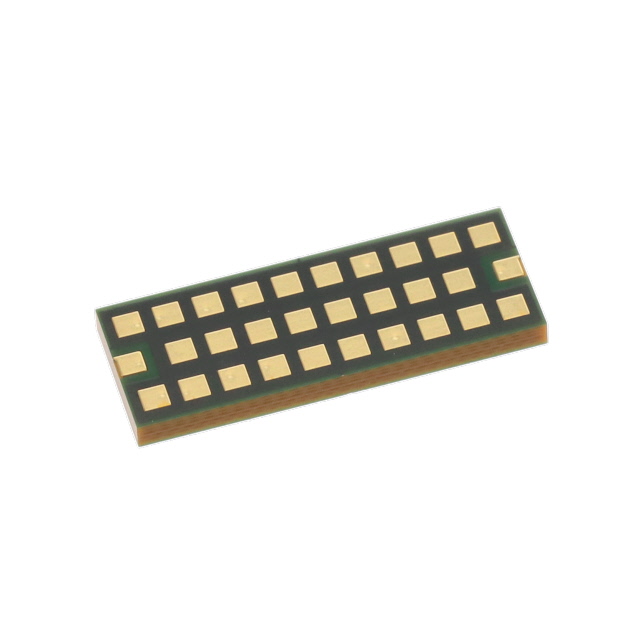

The LP0EA0082A700 is a signal conditioning component manufactured by KYOCERA AVX, classified as an SMT Low Pass Filter within the MLO LP series. It operates at a frequency of 82 MHz with a 50 Ohms impedance and utilizes a 4617 (6640 metric) package. The device supports board mount installation and functions within a temperature range of -55 C to +85 C. It features an insertion loss of 0.8 dB and complies with RoHS standards.

Feature Summary

• Supports multiple wireless standards across various frequency bands
• Multilayer Organic construction with thickness less than 1.0mm
• Surface Mount Technology for automated assembly

Applications

• Wireless communication systems requiring low pass filtering
• Signal conditioning in RF circuits
• Embedded electronics utilizing surface mount components

Procurement Notes

Verify current availability through authorized distributors as this item may be subject to factory special order status. Confirm lead times and minimum ordering requirements directly with suppliers before finalizing procurement plans. Ensure compliance with specific project timelines given potential manufacturing delays associated with specialized signal conditioning components.

Selection Notes

Select this filter for applications requiring precise low-pass characteristics at 82 MHz with minimal insertion loss. The compact 4617 package suits space-constrained designs. Verify thermal stability needs against the specified operating temperature range. Consider impedance matching with 50 Ohms systems for optimal signal integrity in high-frequency environments.

Part Context

This component belongs to the MLO LP series of Multilayer Organic Low Pass Filters produced by KYOCERA AVX. These filters are designed to support diverse frequency bands and wireless standards while maintaining a profile under 1.0mm. The series emphasizes integration capabilities for modern electronic devices requiring efficient signal management.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for cross-reference data if alternative sourcing is required.
