Product Detailed Parameters

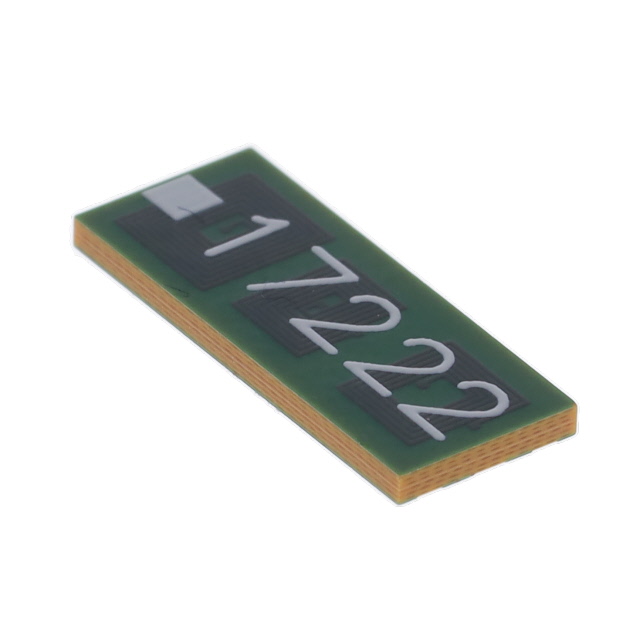

- Description：RF FILTER LOW PASS 54MHZ 31ULGA
- Series：LP
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：54MHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：31-ULGA
- Size / Dimension：0.511" L x 0.206" W (12.99mm x 5.25mm)
- Height (Max)：0.022" (0.56mm)
Download product information
Overview
The LP0FA0054A700 is a low-pass RF filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a cutoff frequency of 54 MHz and features a 50 Ohm impedance. The component utilizes surface-mount technology (SMD/SMT) and is housed in a compact 31-ULGA package. This device belongs to the MLO LP series, which employs Multilayer Organic technology to provide reliable performance in radio frequency circuits.
Feature Summary
- Utilizes Multilayer Organic (MLO) technology for stable RF performance
- Designed as a low-pass filter for effective signal conditioning
- Engineered for surface-mount board integration
Applications
- Radio frequency circuit filtering
- Signal conditioning systems
- Broadband wireless infrastructure
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly with KYOCERA AVX before procurement. Confirm that the 31-ULGA package dimensions align with your PCB footprint requirements. Ensure the operating temperature range meets your environmental specifications. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and lead times.
Selection Notes
Select this component when a 54 MHz low-pass characteristic is required within a minimal footprint. The 31-ULGA package suits high-density designs where space is constrained. Consider the Multilayer Organic construction for applications demanding consistent RF behavior. Verify impedance matching to 50 Ohm systems to ensure optimal signal transmission and minimal reflection.
Part Context
This part belongs to the MLO LP series from KYOCERA AVX, which specializes in compact RF filters. The series leverages organic substrate materials to achieve small form factors suitable for modern electronics. These components are engineered to meet the rigorous demands of communication systems requiring precise frequency control.
Replacement Considerations
Consult official KYOCERA AVX documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without electrical parameter validation.
