Product Detailed Parameters
- Description：RF FILTER LOW PASS 3.6GHZ 1206
- Series：LP1206
- Mfr：KYOCERA AVX
- Package：Tape & Reel (TR)
- Frequency：3.6GHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：0.7dB
- Mounting Type：Surface Mount
- Package / Case：1206 (3216 Metric)
- Size / Dimension：0.121" L x 0.063" W (3.08mm x 1.60mm)
- Height (Max)：0.038" (0.97mm)
Download product information
Overview

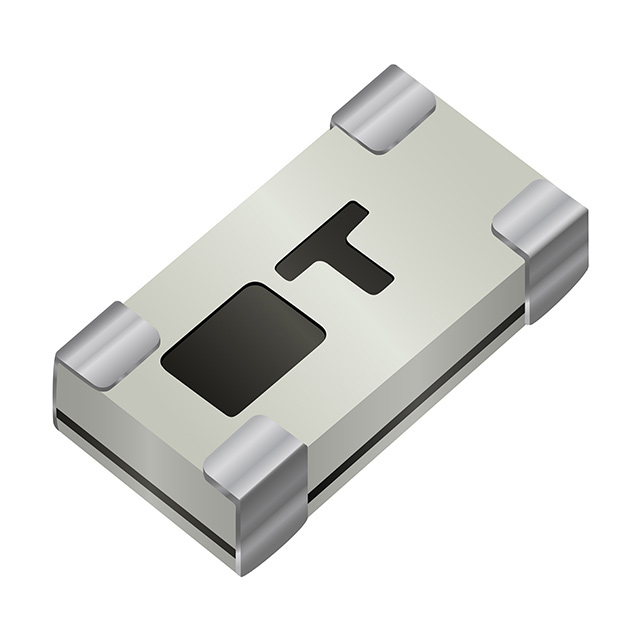

The LP1206A3600ASTR is a thin-film low-pass RF filter manufactured by KYOCERA AVX. It operates at a center frequency of 3.6 GHz with a 50-ohm impedance. The component features an insertion loss of 0.7 dB and is housed in a 1206 (3216 metric) surface-mount package. Physical dimensions are 3.08 mm in length, 1.60 mm in width, and a maximum height of 0.97 mm. It functions within a temperature range of -40°C to +85°C.
Feature Summary
- Utilizes thin-film multilayer technology for miniature form factor and high-frequency performance
- Provides rugged construction suitable for demanding RF environments
- Designed for board mount surface-mount applications
Applications
- RF signal conditioning circuits
- Wireless communication systems
- High-performance filtering applications
Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the ordering suffix matches the required reel packaging specifications. Cross-reference datasheet details regarding moisture sensitivity level and RoHS compliance status prior to procurement to meet regulatory requirements.
Selection Notes
Select this component when a 3.6 GHz cutoff frequency is required for low-pass filtering. Ensure the design accommodates the 1206 footprint dimensions and 50-ohm system impedance. Consider the operating temperature range and insertion loss characteristics relative to the specific application's signal integrity needs.
Part Context
This component belongs to the LP series of low-pass filters from KYOCERA AVX. The series utilizes thin-film technology to deliver excellent high-frequency performance in a small package. These filters are designed for signal conditioning in RF applications requiring precise frequency control.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Verify compatibility with alternative components by matching electrical parameters such as cutoff frequency, impedance, and physical package dimensions.
