LP1EA0320A700

Overview

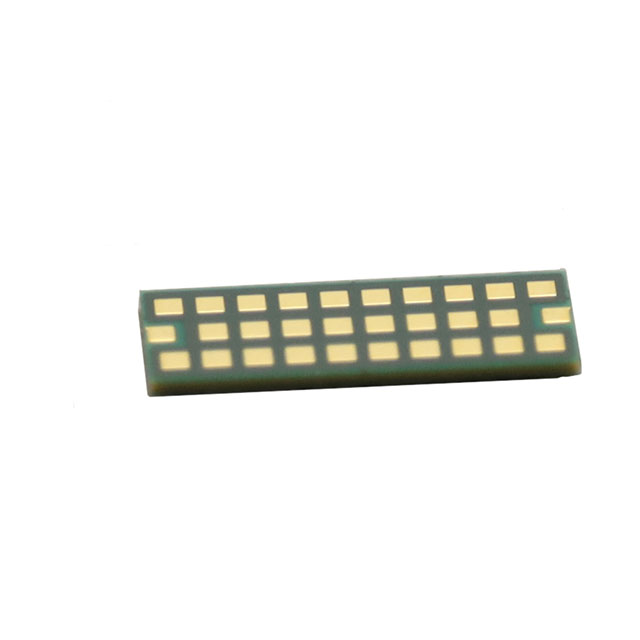

The LP1EA0320A700 is a low-pass RF filter manufactured by KYOCERA AVX, operating at a center frequency of 320 MHz. It features a 50 Ohm impedance and utilizes surface-mount technology (SMD/SMT) in a 4617 package size. The component belongs to the MLO LP series and is designed for board mounting applications.

Feature Summary

• Utilizes multilayer organic (MLO) technology for signal conditioning
• Designed for surface mount integration on printed circuit boards
• Provides low-pass filtering characteristics within the radio frequency spectrum

Applications

• RF signal conditioning circuits
• Radio frequency communication systems
• Electronic device signal filtering

Procurement Notes

Verify current availability status directly with authorized distributors or the manufacturer, as supply levels may fluctuate. Confirm that the specific package dimensions and termination types align with your PCB layout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a 320 MHz cutoff frequency is required for low-pass filtering applications. Ensure compatibility with 50 Ohm system impedance and verify that the 4617 surface-mount footprint fits within the designated area of the target circuit board design.

Part Context

This part is part of the MLO LP series from KYOCERA AVX, which specializes in multilayer organic filters. These components are engineered for high-performance signal conditioning in compact form factors suitable for modern electronic assemblies requiring precise RF filtering capabilities.

Replacement Considerations

No direct substitute part numbers are publicly confirmed for this specific model. Evaluate alternative low-pass filters with matching 320 MHz frequency, 50 Ohm impedance, and compatible SMD package dimensions if replacement is necessary.
