LP1EA0500A700

Overview

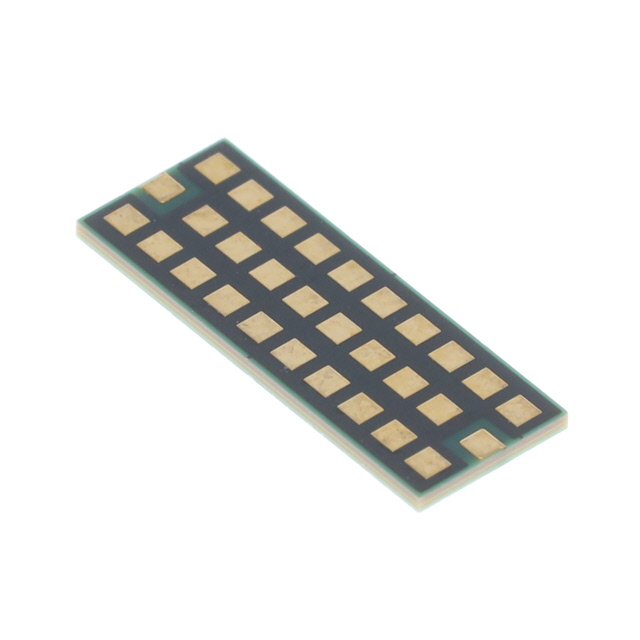

The KYOCERA AVX LP1EA0500A700 is a surface-mount low-pass RF filter designed for signal conditioning applications. It operates at a cutoff frequency of 500 MHz with a nominal impedance of 50 Ohms. The component utilizes SMD/SMT termination styles and is housed in a compact 4617 (1143 metric) package case. This device belongs to the MLO series, engineered for board mounting in electronic circuits requiring precise frequency filtering.

Feature Summary

• Provides effective low-pass filtering characteristics for radio frequency signal conditioning
• Engineered for direct surface-mount integration onto printed circuit boards
• Constructed within a compact 4617 package to support dense layout designs

Applications

• RF signal path filtering in communication equipment
• Signal conditioning modules requiring 50-ohm impedance matching
• Base station and infrastructure electronics

Procurement Notes

Verify the specific datasheet revision and RoHS compliance status directly with KYOCERA AVX before finalizing procurement. Confirm that the 4617 package dimensions align precisely with your PCB footprint requirements. Ensure that the 500 MHz cutoff frequency meets the system's spectral integrity needs without introducing excessive insertion loss or phase distortion in the passband.

Selection Notes

Select this component when a 500 MHz low-pass response is required in a 50-ohm system environment. The 4617 package size offers a balance between electrical performance and board space efficiency compared to larger packages. Consider the operating temperature range and power handling capabilities relative to the specific application environment to ensure reliable long-term operation under expected load conditions.

Part Context

This part belongs to the KYOCERA AVX MLO family of microwave low-pass filters. These components are specifically developed for high-frequency applications where size constraints and signal integrity are critical. The LP1EA0500A700 represents a standard offering within this portfolio, providing consistent performance metrics for designers working on RF front-end architectures.

Replacement Considerations

Consult official substitution guides for compatible alternatives within the same MLO series. Verify that any substitute maintains identical 50-ohm impedance and similar package dimensions to avoid rework.
