LP1EA0720A700

Overview

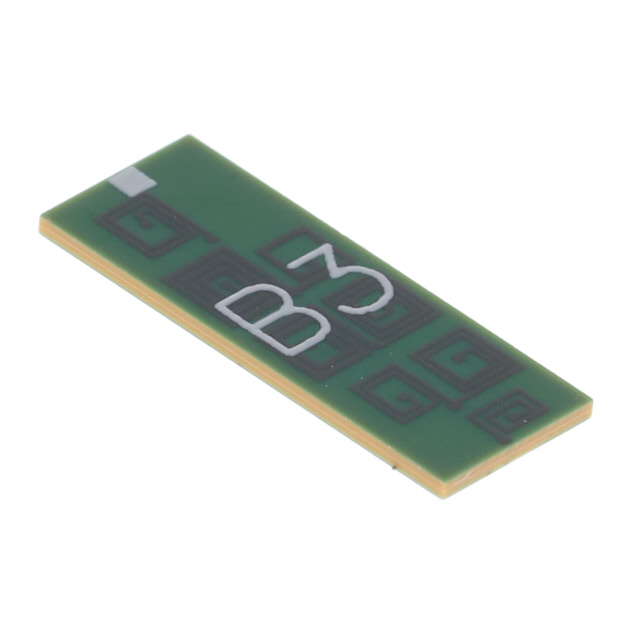

The LP1EA0720A700 is a low-pass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. It operates at a center frequency of 720 MHz with a nominal impedance of 50 Ohms. The component utilizes surface-mount technology (SMD/SMT) and is housed in a 2616 (6640 metric) package. It supports board mounting and functions within an operating temperature range of -55°C to +85°C. This device belongs to the MLO LP series and is classified under RF filters.

Feature Summary

• Provides low-pass filtering characteristics for signal conditioning
• Utilizes surface-mount technology for board integration
• Constructed with high-density porcelain for ruggedness

Applications

• RF signal processing circuits
• Wireless communication systems
• Signal conditioning modules

Procurement Notes

Verify current product status as sources indicate this model may be marked Not For New Designs. Confirm availability through authorized distributors or direct manufacturer channels. Check for specific ordering suffixes that may affect function or packaging. Ensure compliance with RoHS requirements before procurement.

Selection Notes

Select this component for applications requiring a 720 MHz cutoff frequency with 50 Ohm impedance. The 2616 package size suits compact surface-mount designs. Verify thermal stability requirements against the -55°C to +85°C operating range. Consider the MLO LP series compatibility for system integration.

Part Context

This part belongs to the KYOCERA AVX MLO LP series of low-pass filters. These components are engineered for RF and microwave applications, offering hermetic packaging and high Q factors. The series is known for rugged construction suitable for demanding electronic environments.

FAQ

What is the operating temperature range?

The component operates between -55°C and +85°C.

What package type does it use?

It uses a 2616 (6640 metric) surface-mount package.
