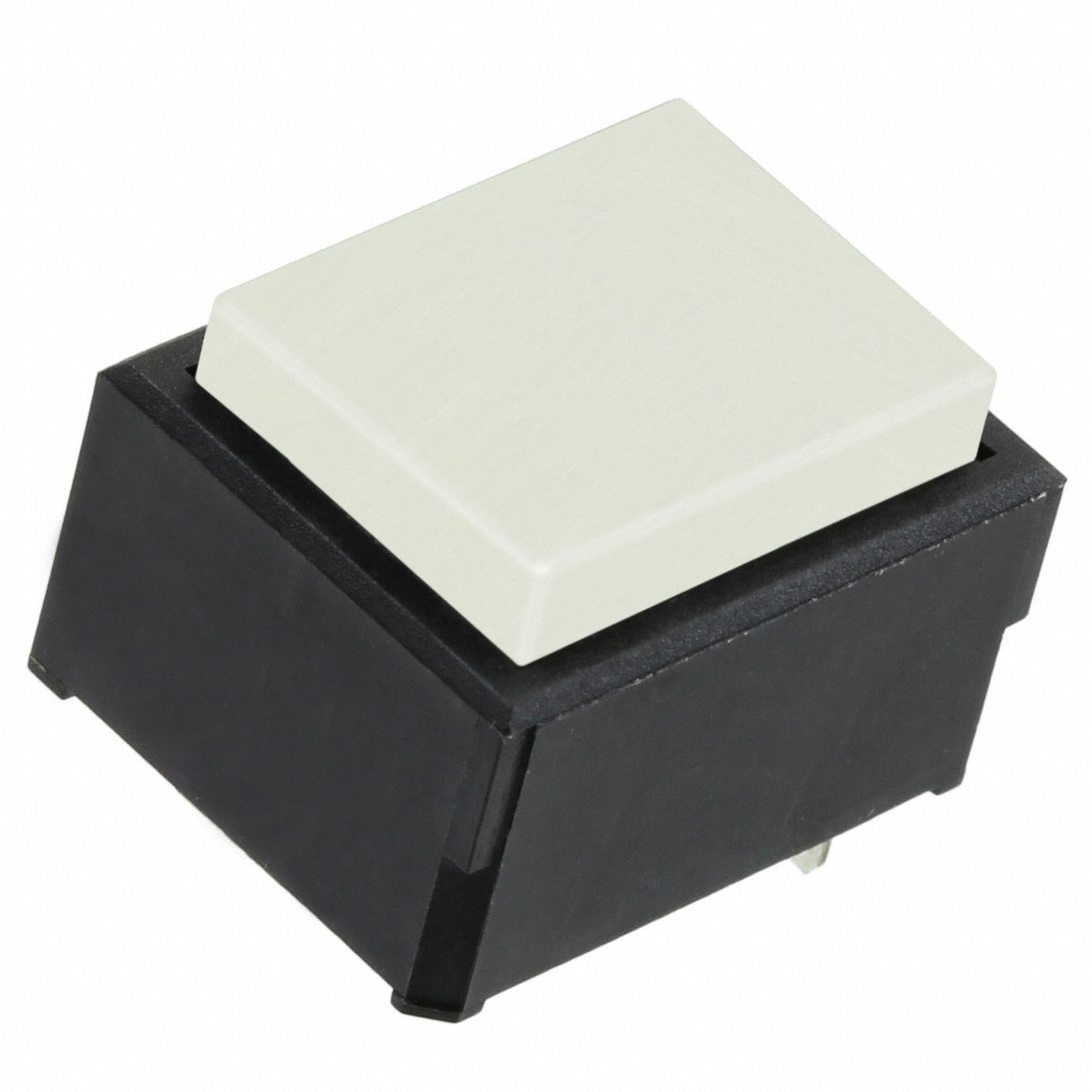

Pushbutton Switches LP1W-16S-W-Z product image

LP1W-16S-W-Z

Description：SWITCH PUSHBUTTON SPDT 3A 125V
Series：LP
Mfr：Nidec Components Corporation
Package：Tube

SKU:eaaa206c0a4d Category: Pushbutton Switches Brand: Nidec Components Corporation

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

LP1W-16S-W-Z is listed in the Pushbutton Switches range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SWITCH PUSHBUTTON SPDT 3A 125V. Review the specifications below when checking this part for your BOM.

Pushbutton Switches specifications for LP1W-16S-W-Z

Description：SWITCH PUSHBUTTON SPDT 3A 125V
Series：LP
Mfr：Nidec Components Corporation
Package：Tube
Mounting Type：Through Hole
Type：Standard
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：3A (AC/DC)
Actuator Type：Rectangular, Button
Actuator Marking：No Marking
Color - Actuator/Cap：White
Illumination Type, Color：-
Illumination Voltage (Nominal)：-
Termination Style：PC Pin
Ingress Protection：-
Features：-
Panel Cutout Dimensions：-
Operating Temperature：-15°C ~ 60°C
Voltage Rating - DC：30 V
Voltage Rating - AC：125 V

Pushbutton Switches datasheet and documents for LP1W-16S-W-Z
