Product Detailed Parameters

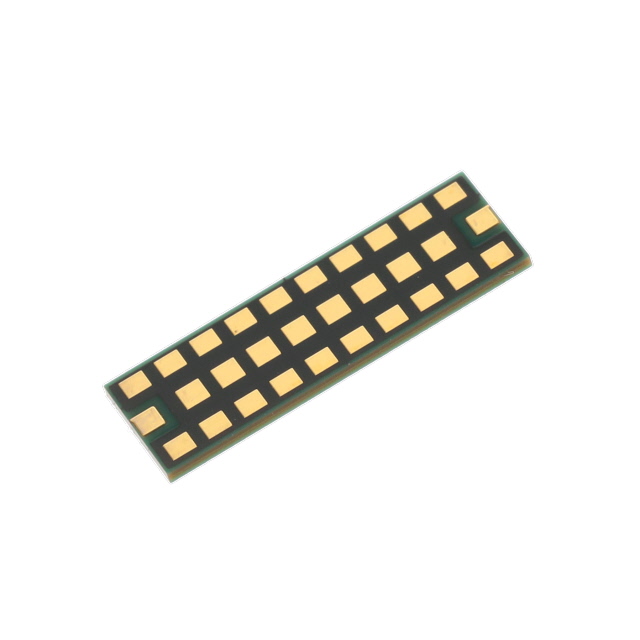

- Description：RF FILTER LOW PASS 1.08GHZ 30SMD
- Series：LP
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：1.08GHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：30-SMD, No Lead
- Size / Dimension：0.460" L x 0.143" W (11.68mm x 3.64mm)
- Height (Max)：0.040" (1.02mm)
Download product information
Overview
The LP2EA1080A700 is a low-pass RF filter manufactured by KYOCERA AVX. It operates at a cutoff frequency of 1.08 GHz with a bandwidth ranging from 0.0 to 1.08E6 kHz. The component features an insertion loss of 0.8000 dB and maintains a system impedance of 50 Ohms. It utilizes a surface-mount device (SMD/SMT) termination style within a compact 4614 package size, designed for signal conditioning applications in radio frequency circuits.
Feature Summary
- Provides low-pass filtering for radio frequency signals
- Utilizes surface-mount technology for board integration
- Maintains 50 Ohm impedance compatibility
Applications
- Radio frequency signal conditioning
- EMI filtering in communication systems
- Signal integrity management in RF circuits
Procurement Notes
Verify the specific datasheet version when sourcing this component to ensure compliance with current manufacturing standards. Confirm that the 4614 package dimensions align with your PCB footprint requirements. Check for RoHS compliance documentation if required by your assembly specifications. Ensure the supplier provides traceability for the KYOCERA AVX origin.
Selection Notes
Select this component when a 1.08 GHz cutoff frequency is required for low-pass filtering. The 50 Ohm impedance matches standard RF transmission lines. The SMD/SMT termination allows for automated placement. Consider the 4614 package size for space-constrained designs requiring precise signal attenuation above the cutoff frequency.
Part Context
KYOCERA AVX Components Corporation specializes in electronic components including capacitors, connectors, and RF devices. This filter belongs to their signal conditioning portfolio, supporting high-frequency applications. The company emphasizes reliability and precision in its RF product lines for global markets.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify electrical parameters such as cutoff frequency and insertion loss against potential alternatives before substitution.
