LP2EA1770A700

Overview

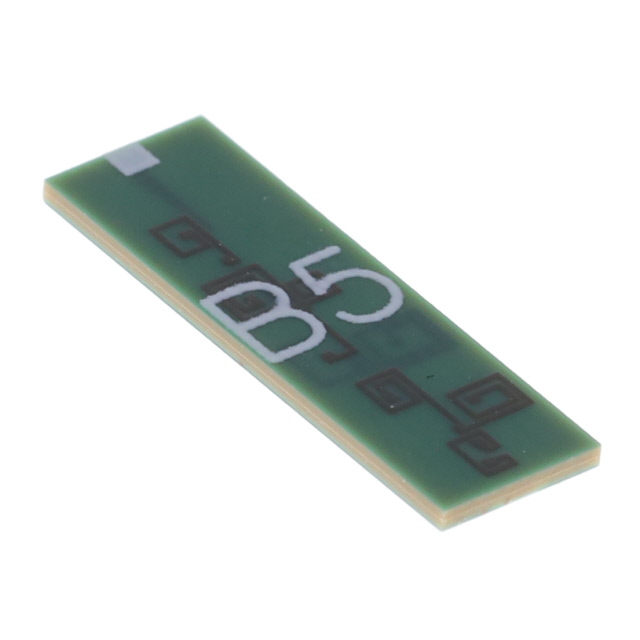

The KYOCERA AVX LP2EA1770A700 is a surface-mount low-pass RF filter designed for signal conditioning applications. It operates at a center frequency of 1770 MHz and utilizes multilayer organic (MLO) high-density interconnect technology for construction. The component is housed in a 30-SMD, no-lead package, providing a compact form factor suitable for modern electronic assemblies.

Feature Summary

• Utilizes multilayer organic high-density interconnect technology for robust construction
• Designed as a low-pass filter for radio frequency signal conditioning
• Surface-mount configuration with a no-lead package format

Applications

• Radio frequency signal processing circuits
• Wireless communication device filtering
• Electronic assembly signal conditioning

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm exact electrical parameters and mechanical dimensions before integration. Ensure compatibility with standard surface-mount reflow soldering profiles. Confirm that the 30-SMD no-lead package aligns with the target PCB footprint design requirements.

Selection Notes

Select this component when a low-pass filter solution is required for RF applications around 1770 MHz. The MLO technology offers a distinct construction method compared to traditional ceramic filters. Consider the 30-SMD package size constraints during layout planning to ensure proper placement and thermal management within the system architecture.

Part Context

KYOCERA AVX Components Corporation manufactures this part as part of its broader portfolio of advanced electronic components. The company specializes in capacitors, crystal devices, connectors, and RF/microwave solutions. This filter represents their capability in producing specialized signal conditioning components using proprietary organic interconnect technologies.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
