Product Detailed Parameters

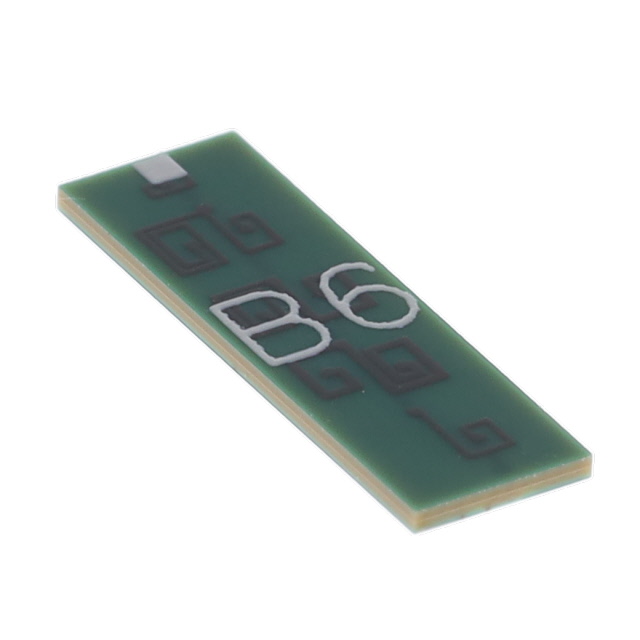

- Description：RF FILTER LOW PASS 2.6GHZ
- Series：LP
- Mfr：KYOCERA AVX
- Package：Bulk
- Frequency：2.6GHz
- Bandwidth：-
- Filter Type：Low Pass
- Ripple：-
- Insertion Loss：-
- Mounting Type：Surface Mount
- Package / Case：-
- Size / Dimension：0.460" L x 0.143" W (11.68mm x 3.64mm)
- Height (Max)：0.040" (1.02mm)
Download product information
Overview
The LP2EA2600A700 is a surface-mount low-pass filter manufactured by KYOCERA AVX, designed for signal conditioning applications. Operating at a cutoff frequency of 2600 MHz, this component utilizes SMD/SMT termination methods and is housed in a 4614 package. It features a nominal impedance of 50 Ohms and is suitable for board mounting. The device is engineered to function within an operating temperature range extending from -55°C to +85°C. As part of the MLO LP series, it provides RF filtering capabilities for high-frequency electronic circuits.
Feature Summary
- Provides low-pass filtering functionality for signal conditioning
- Utilizes surface-mount technology for board integration
- Designed for operation at 2600 MHz with 50 Ohm impedance
Applications
- RF signal conditioning
- High-frequency circuit filtering
- Electronic signal processing
Procurement Notes
Verify current availability status directly with the manufacturer or authorized distributors, as lead times may vary significantly. Confirm that the specific package dimensions and termination types match your PCB design requirements. Ensure environmental compliance documentation is obtained prior to final procurement decisions.
Selection Notes
Select this component when a 2600 MHz low-pass characteristic is required in a compact 4614 footprint. Consider the 50 Ohm impedance matching for system compatibility. Evaluate the -55°C to +85°C temperature range against your operational environment constraints before implementation.
Part Context
This component belongs to the KYOCERA AVX MLO LP series of low-pass filters. These devices are engineered for RF applications requiring precise signal attenuation above the cutoff frequency. The series offers various frequency options packaged in standardized surface-mount formats for automated assembly.
FAQ
What is the operating temperature range for the LP2EA2600A700?
The component operates within a temperature range of -55°C to +85°C.
What type of termination does this filter use?
It uses SMD/SMT (Surface Mount Device/Surface Mount Technology) terminations for board mounting.
