LP368PWN1-D0G is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Cree LED. Its product description is LED COOL WHITE CLEAR P4 T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for LP368PWN1-D0G
- Description：LED COOL WHITE CLEAR P4 T/H
- Series：-
- Mfr：Cree LED
- Package：Tube
- Color：White, Cool
- Configuration：Standard
- Lens Color：Colorless
- Lens Transparency：Clear
- Millicandela Rating：400mcd
- Lens Style：Square with Flat Top
- Lens Size：7.60mm
- Voltage - Forward (Vf) (Typ)：3.6V
- Current - Test：30mA
- Viewing Angle：130°
- Mounting Type：Through Hole
- Wavelength - Dominant：-
- Wavelength - Peak：-
- Features：-
- Package / Case：4-DIP (0.200", 5.08mm)
- Supplier Device Package：P4
- Size / Dimension：7.60mm L x 7.60mm W
- Height (Max)：4.85mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for LP368PWN1-D0G
LED Indication - Discrete Overview

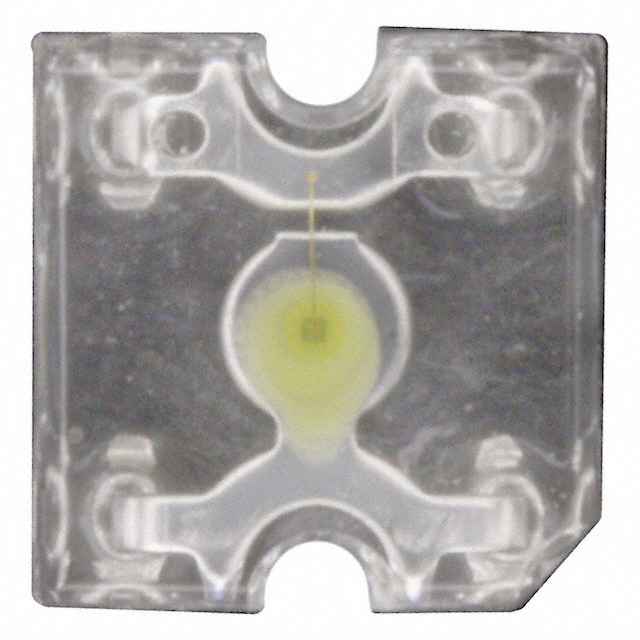

The Cree LED LP368PWN1-D0G is a P4 series through-hole lamp featuring a 7.6 x 7.6 mm package and a 130-degree viewing angle. It utilizes a water-transparent lens with a stopper for environmental protection. The component emits Cool White light, providing high visibility for indicator applications.
LED Indication - Discrete Feature Summary
- Features a 130-degree wide beam angle for broad illumination coverage
- Incorporates a water-transparent lens with an integrated stopper for durability
- Designed as a standard configuration through-hole component
LED Indication - Discrete Applications
- Automotive aftermarket lighting indicators
- Emergency vehicle lighting status displays
- Retail environment general illumination accents
LED Indication - Discrete Procurement Notes
Verify the specific performance bin regarding color, forward voltage, and brightness ranges required for your design. Ensure the through-hole mounting method aligns with your PCB layout. Confirm that the 130-degree viewing angle meets the optical requirements of the target application before finalizing the order.
LED Indication - Discrete Selection Notes
Select this model when a wide 130-degree beam is necessary for visibility. The water-transparent lens offers protection suitable for varied environments. Consider the Cool White output for clear indication purposes. Evaluate the through-hole form factor against surface-mount alternatives if space constraints exist.
LED Indication - Discrete Part Context
This component belongs to the Cree P4 LED family, known for high-brightness performance in white, amber, orange, and red variants. These lamps are optimized for applications requiring maximum light output from compact sources, such as automotive and emergency vehicle lighting systems.
LED Indication - Discrete Replacement Considerations
Consult official Cree LED documentation for direct substitutes within the P4 series. Verify compatibility of pin spacing and electrical characteristics when considering alternative part numbers.
